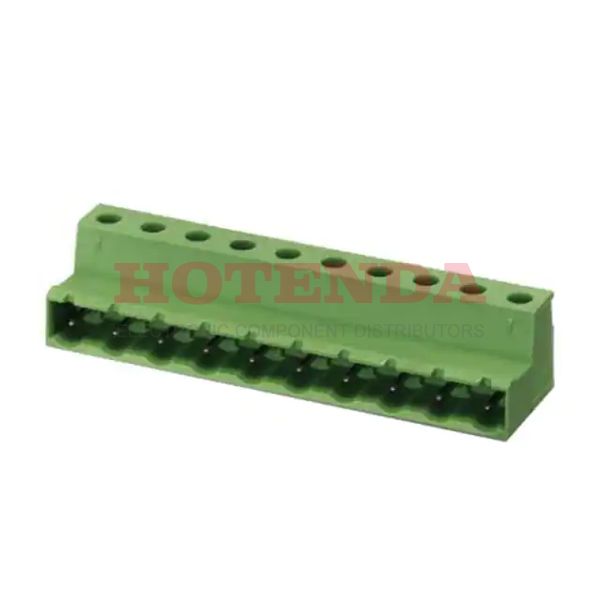

1828883

1828883

1828883

Phoenix Contact

1828883 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1828883 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 19.159997g
PackagingBulk
Published 2011
Series COMBICON GIC
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Male Pins
Number of Positions 10
Color Green
Number of Rows 1
Voltage - Rated 400V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.300 7.62mm
Insulation Height 0.591 15.00mm
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 10
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Screw Size M3
Wire Cross Section 2.5 mm2
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:335 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$20.089862$20.089862
10$18.952700$189.527
100$17.879906$1787.9906
500$16.867835$8433.9175
1000$15.913052$15913.052

1828883 Product Details

1828883 Overview


The product comes in a package of Screw.The device's mounting type is Free Hanging (In-Line).We package the product with a Bulk case.A member of the COMBICON GIC Series.As well as PA, 94V-0, to name a few.Free Hanging represents the mounting point for the part.There are a lot of similarities between this part and other Plug, Male Pins products.

1828883 Features


COMBICON GIC series

1828883 Applications


There are a lot of Phoenix Contact 1828883 Terminal Blocks applications.

  • Industrial Automation
  • Control panels
  • Datacom
  • Military Technology
  • Refrigeration control
  • Measuring & Control Technology
  • Data Technology
  • Medical technology
  • LED municipal outdoor and street lighting
  • Energy efficient lighting (LED)
