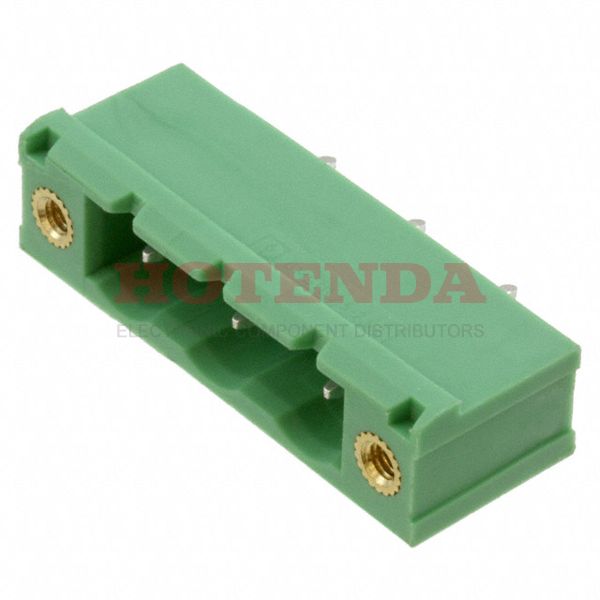

Name: 1829167
Brand: Phoenix Contact
SKU: 1829167
Price: 3.95000 USD
Availability: InStock

new-10%

1829167

Manufacturer part number:1829167

Manufacturer:Phoenix Contact

Description:1829167 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1829167 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	176.999992g
Packaging	Bulk
Published	2011
Series	COMBICON GMSTBV
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	400V
Additional Feature	PA, 94V-0
Pitch	0.300 7.62mm
Orientation	Straight
Depth	8.6mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Solder
Approval Agency	CB, CSA, UL, VDE
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	10A
Number of Decks	1
Current - UL	15A
Voltage - IEC	630V
Number of Ways	3
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	3
Height	15.9mm
Length	33.44mm
Width	33.44mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1829167 Product Details

1829167 Overview

The packaging contains Plug.Mounting type is Through Hole.It has been determined that a Bulk case is necessary to package the product.This product is in the COMBICON GMSTBV Series.Besides that, there's also PA, 94V-0, to name a few.This feature makes it more powerful in a number of ways due to its Mating and Mounting Flange feature.This part is mounted by Through Hole. Other Header, Male Pins, Shrouded (4 Side) products share lots of benefits with this part.
