Name: 1829183
Brand: Phoenix Contact
SKU: 1829183
Price: 5.66000 USD
Availability: InStock

new-10%

1829183

Manufacturer part number:1829183

Manufacturer:Phoenix Contact

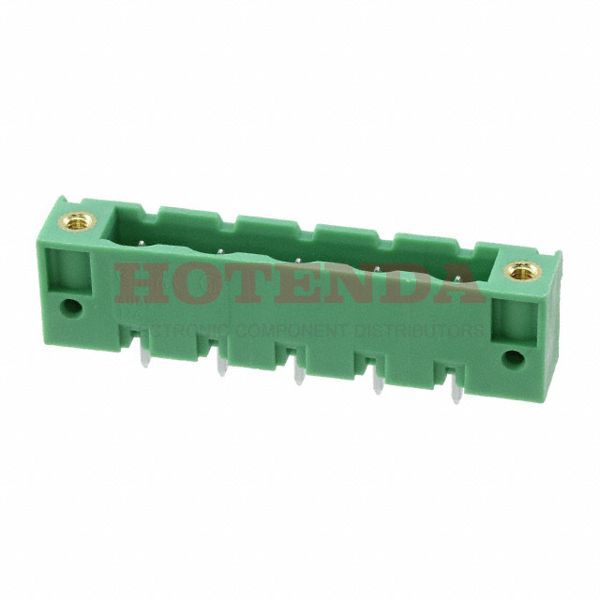

Description:Bulk 0.300 7.62mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON GMSTBV Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1829183 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	176.999992g
Packaging	Bulk
Series	COMBICON GMSTBV
Published	2010
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	400V
Additional Feature	PA, 94V-0
Pitch	0.300 7.62mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.154 3.90mm
Number of Levels	1
Current	15A
Number of Decks	1
Voltage - IEC	630V
Number of Ways	5
Safety Approval	UL
Header Orientation	Vertical
Current - IEC	12A
Height	15.9mm
Length	8.6mm
Width	48.68mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1829183 Product Details

1829183 Overview

Packaging is Plug.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the COMBICON GMSTBV Series, it can be found in this category.There are also other features such as PA, 94V-0, to name only a few.With its Mating and Mounting Flange feature, it is more powerful in many ways.In this case, Through Hole mounts the part.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
