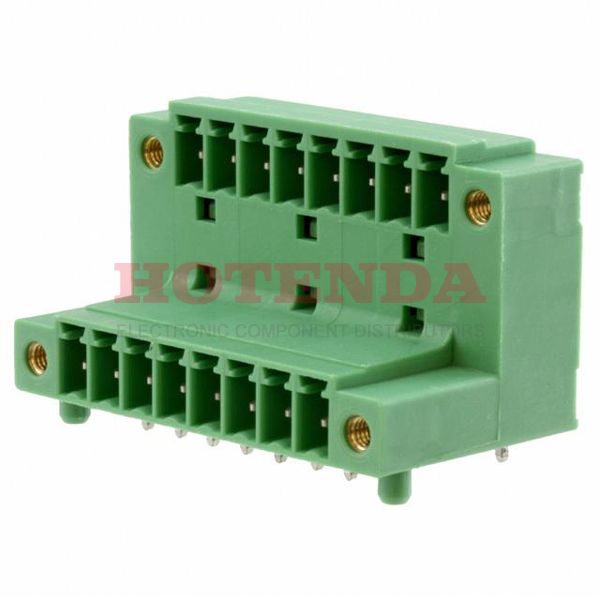

Name: 1830169
Brand: Phoenix Contact
SKU: 1830169
Price: 13.64000 USD
Availability: InStock

new

1830169

Manufacturer part number:1830169

Manufacturer:Phoenix Contact

Description:1830169 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1830169 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2011
Series	COMBICON MCD
Feature	Board Guide, Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	16
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	21.9mm
Insulation Height	0.894 22.71mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	8A
Number of Levels	2
Current	8A
Number of Decks	1
Voltage - IEC	320V
Positions Per Level	8
Number of Ways	8
Safety Approval	UL
Header Orientation	90°, Right Angle
Fastening Method	CONNECTOR
Height	26.2mm
Length	40.87mm
Width	40.87mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1830169 Product Details

1830169 Overview

Packaging for this item is Plug.Through Hole is the mounting type for the device.A Bulk case is used to package the product.There is a product in the COMBICON MCD Series.Other features include PBT, 94V-0, to name just a few.Several benefits come from the Board Guide, Mating Flange feature.Through Hole is the mounting point for the part.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
