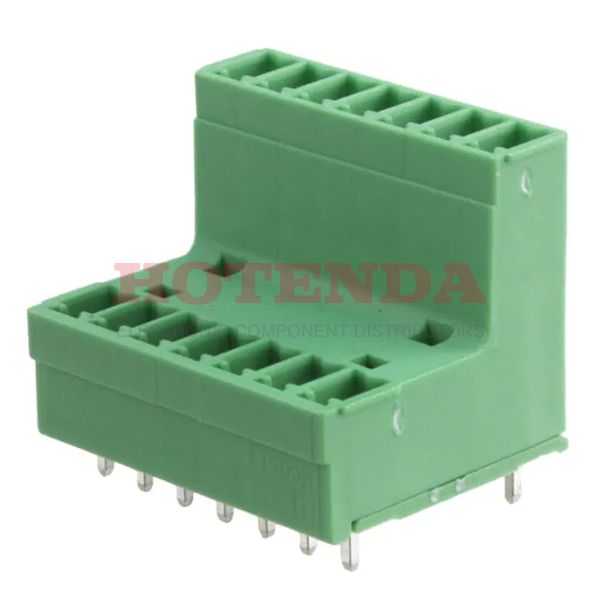

Name: 1830457
Brand: Phoenix Contact
SKU: 1830457
Price: 9.99000 USD
Availability: InStock

new

1830457

Manufacturer part number:1830457

Manufacturer:Phoenix Contact

Description:1830457 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1830457 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	118.000014g
Packaging	Bulk
Published	2011
Series	COMBICON MCDV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	14
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Straight
Depth	22.7mm
Insulation Height	0.862 21.89mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	2
Current	8A
Number of Decks	1
Voltage - IEC	320V
Positions Per Level	7
Number of Ways	7
Safety Approval	UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	25.3mm
Length	28.06mm
Width	28.06mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1830457 Product Details

1830457 Overview

The packaging contains Plug.There is a Through Hole mounting type for the device.In order to package the product, a Bulk case is used.A member of the COMBICON MCDV Series.Then there's PBT, 94V-0, for example.Through Hole is the mounting point for the part.With this part, you get a lot of benefits that you won't find in other Header, Male Pins, Shrouded (4 Side) products.
