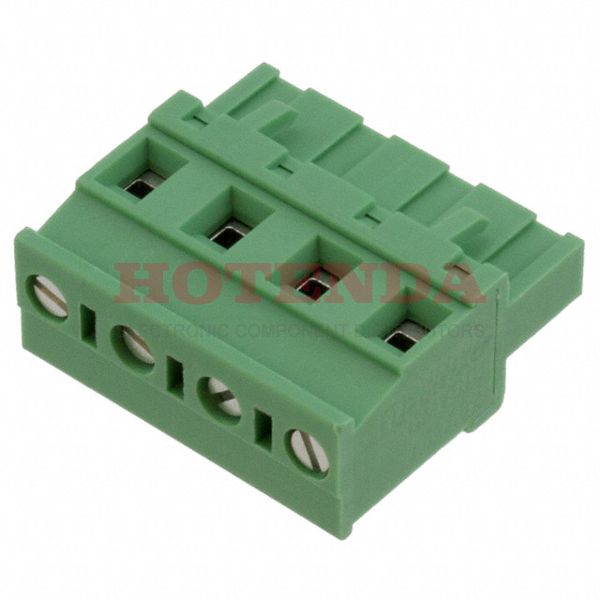

Name: 1832549
Brand: Phoenix Contact
SKU: 1832549
Price: 8.99000 USD
Availability: InStock

new

1832549

Manufacturer part number:1832549

Manufacturer:Phoenix Contact

Description:1832549 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1832549 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	170.097139g
Packaging	Bulk
Published	2011
Series	COMBICON GMVSTBR
Feature	Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	500V
Pitch	0.300 7.62mm
Orientation	Straight
Depth	12.6mm
Insulation Height	1.024 26.01mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	4
Voltage	300V
Max Supply Voltage	500V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	26mm
Length	28.44mm
Width	28.44mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1832549 Product Details

1832549 Overview

It comes in Screw, Socket packaging.There is a Free Hanging (In-Line) mounting type for the device.In order to package the product, a Bulk case is used.The product belongs to the COMBICON GMVSTBR Series.Many aspects of its Retention Latches (Wire Side) feature increase its effectiveness.By Cable, Free Hanging it's mounted.A supply voltage of 500V should not be exceeded by this chip.Many Plug, Female Sockets products share the same benefits as this part.
