1832620

1832620

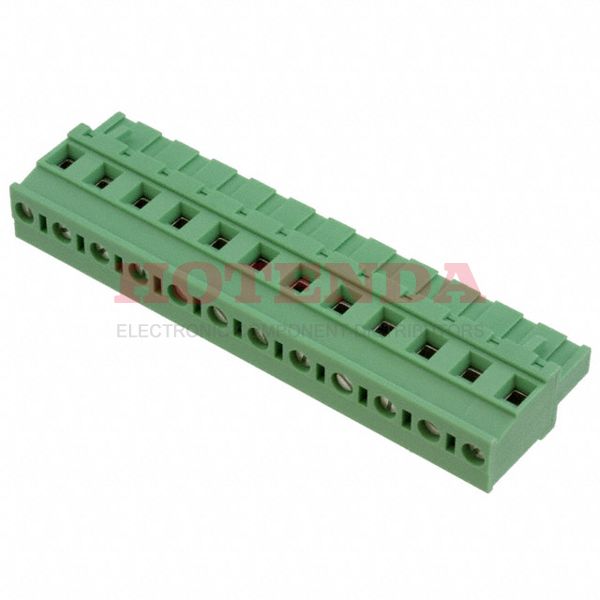

1832620

Phoenix Contact

1832620 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1832620 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 170.097139g
PackagingBulk
Published 2011
Series COMBICON GMVSTBR
Feature Retention Latches (Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 12
Color Green
Number of Rows 1
Voltage - Rated 500V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.300 7.62mm
Insulation Height 1.024 26.01mm
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 1kV
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 12
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Current - IEC 12A
Screw Size M3
Wire Cross Section 2.5 mm2
Height 26mm
Length 12.6mm
Width 89.4mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-2
Lead Free Lead Free
In-Stock:292 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$24.236415$24.236415
10$22.864542$228.64542
100$21.570323$2157.0323
500$20.349361$10174.6805
1000$19.197511$19197.511

1832620 Product Details

1832620 Overview


Packaging is Screw, Socket.Free Hanging (In-Line) is the mounting type.A Bulk case is used for packaging.The product belongs to the COMBICON GMVSTBR Series.To name a few, there is also PA, 94V-0.It is more powerful in many ways due to its Retention Latches (Wire Side) feature.There's a Free Hanging mount on the part.There are many benefits shared between this part and other Plug, Female Sockets products.

1832620 Features


COMBICON GMVSTBR series

1832620 Applications


There are a lot of Phoenix Contact 1832620 Terminal Blocks applications.

  • Datacom
  • Measuring & Control Technology
  • Telecommunications
  • Energy efficient lighting (LED)
  • Electrical substations
  • All Electrical Machinery
  • Automotive Electronics
  • Communication
  • Instrumentation
  • Control panels
