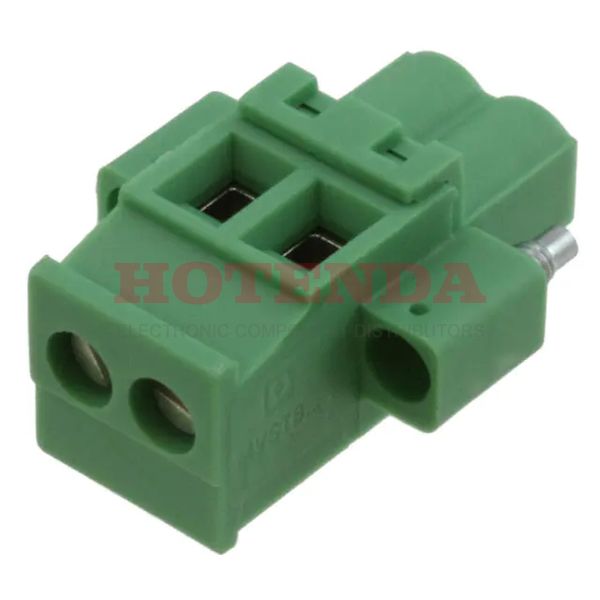

Name: 1834903
Brand: Phoenix Contact
SKU: 1834903
Price: 2.77000 USD
Availability: InStock

new-10%

1834903

Manufacturer part number:1834903

Manufacturer:Phoenix Contact

Description:1834903 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1834903 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	133.000002g
Packaging	Bulk
Published	2010
Series	COMBICON MVSTBW
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	12.6mm
Insulation Height	1.024 26.01mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	2
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Height	20.32mm
Length	20.32mm
Width	26mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1834903 Product Details

1834903 Overview

The packaging contains Socket.This device has a mounting type of Free Hanging (In-Line).The product is packaged in a Bulk case.This product is from the COMBICON MVSTBW Series.Additionally, there are other features such as PA, 94V-0.As a result of its Mating Flange, Retention Latches (Non-Wire Side) feature, it possesses a great deal of power.By Free Hanging, Panel it's mounted.A voltage greater than 250V should not be applied to this chip.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
