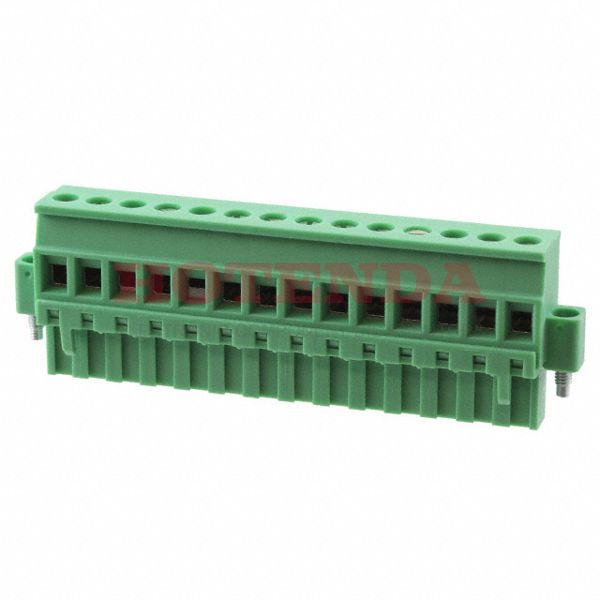

Phoenix Contact

1835216 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1835216 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 133.000002g
PackagingBulk
Published 2011
Series COMBICON MVSTBR
Feature Mating Flange, Retention Latches (Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 14
Color Green
Number of Rows 1
Voltage - Rated 250V
Additional FeaturePA, 94V-0
HTS Code8536.69.40.40
Pitch 0.200 5.08mm
Orientation Straight
Insulation Height 1.024 26.01mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 14
Voltage 300V
Max Current Rating 12A
Number of Levels 1
Current 15A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-30 AWG
Voltage - IEC 630V
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways 14
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
Wire Cross Section 2.5 mm2
Height 26mm
Length 12.6mm
Width 81.28mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:464 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$13.528558$13.528558
10$12.762791$127.62791
100$12.040368$1204.0368
500$11.358838$5679.419
1000$10.715885$10715.885

1835216 Product Details

1835216 Overview


The packaging contains Screw, Socket.Free Hanging (In-Line) is the mount type.This product is packaged in a case marked Bulk.It's part of the COMBICON MVSTBR Series.To name a few, there is also PA, 94V-0.Many aspects of its Mating Flange, Retention Latches (Wire Side) feature increase its effectiveness.Part Free Hanging, Panel is mounted to the part.The benefts of this part are similar to those of other Plug, Female Sockets products.

1835216 Features


COMBICON MVSTBR series

1835216 Applications


There are a lot of Phoenix Contact 1835216 Terminal Blocks applications.

  • Blowers
  • Transportation
  • Military Technology
  • Variable speed/frequency drivers
  • Energy efficient lighting (LED)
  • Medical technology
  • Electrical substations
  • All Electrical Machinery
  • Instrumentation
  • Measuring & Control Technology
