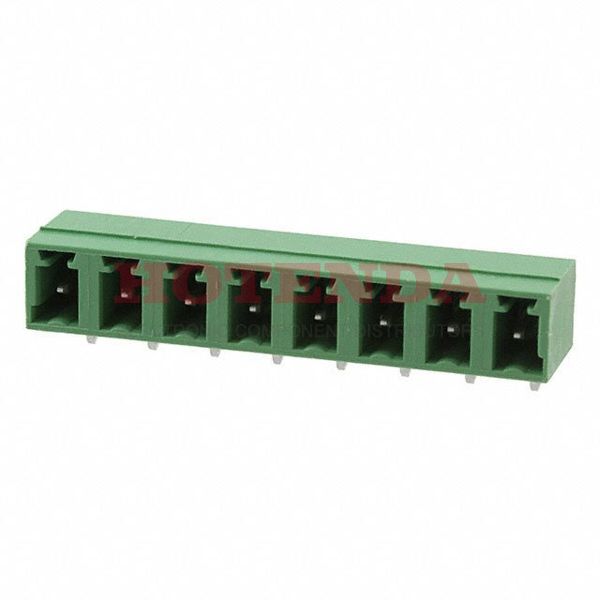

Name: 1836244
Brand: Phoenix Contact
SKU: 1836244
Price: 3.86000 USD
Availability: InStock

new-10%

1836244

Manufacturer part number:1836244

Manufacturer:Phoenix Contact

Description:1836244 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1836244 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	121.99999g
Packaging	Bulk
Published	2011
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, 94V-0
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Contact Gender	Male
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	400V
Number of Ways	8
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	8
Fastening Method	CONNECTOR
Test Voltage	4kV
Height	10.75mm
Length	40.64mm
Width	40.64mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1836244 Product Details

1836244 Overview

The product comes in a package of Plug.Mounting type is Through Hole.Bulk cases are used to package the product.It's from the COMBICON MC Series.As well as PBT, 94V-0, to name a few.Through Hole is the mounting point for the part.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
