Name: 1837420
Brand: Phoenix Contact
SKU: 1837420
Price: 12.77000 USD
Availability: InStock

new

1837420

Manufacturer part number:1837420

Manufacturer:Phoenix Contact

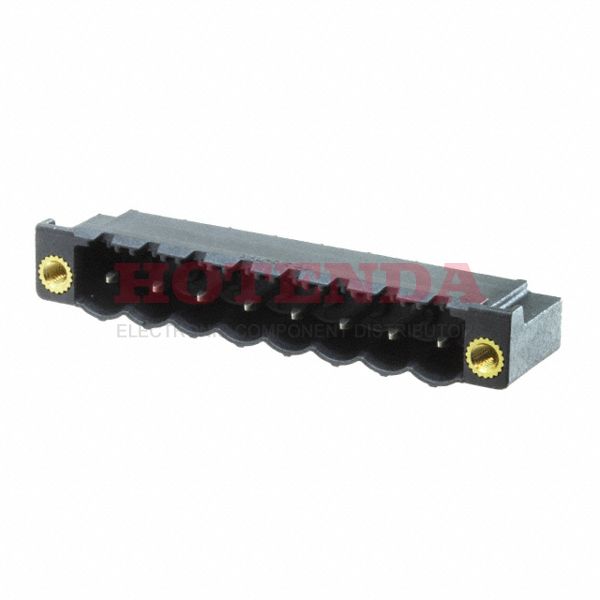

Description:Bulk 0.197 5.00mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON CCV Liquid Crystal Polymer (LCP) Tin Copper Alloy

Case Package:SOT-23

Datasheet:1837420 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-40°C
Packaging	Bulk
Series	COMBICON CCV
Published	2017
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Color	Black
Pitch	0.197 5.00mm
Insulation Height	0.472 12.00mm
Reach Compliance Code	not_compliant
Termination Style	Solder
Contact Tail Length	0.079 2.00mm
Number of Levels	1
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	16A
Header Orientation	Vertical
Current - IEC	12A
RoHS Status	RoHS Compliant

1837420 Product Details

1837420 Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON CCV Series.In many ways, its Mating Flange feature makes it more powerful.In this case, the device operates at -40°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
