Name: 1838242
Brand: Phoenix Contact
SKU: 1838242
Price: 19.93000 USD
Availability: InStock

new

1838242

Manufacturer part number:1838242

Manufacturer:Phoenix Contact

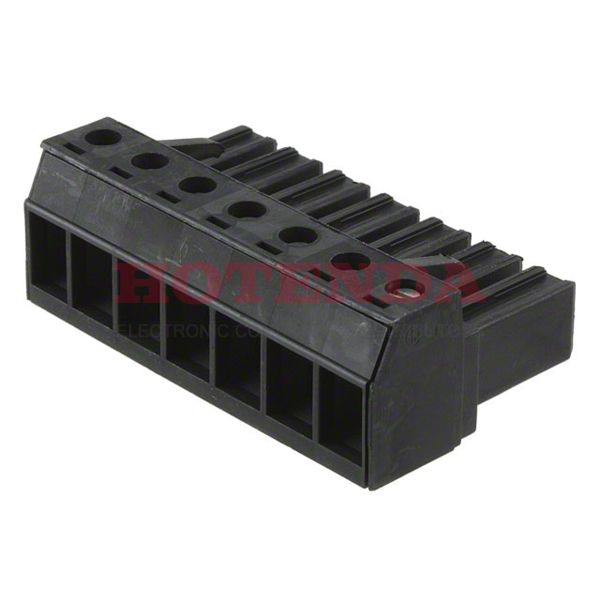

Description:Bulk 0.300 7.62mm Black 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON PC Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1838242 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	600.102706g
Packaging	Bulk
Series	COMBICON PC
Published	2011
Feature	Retention Latches (Non-Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	7
Color	Black
Voltage - Rated	400V
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Insulation Height	0.713 18.10mm
Reach Compliance Code	not_compliant
Current Rating	20A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Number of Levels	1
Current	5A
Wire Gauge (Max)	10 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	10-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-4mm2
Wire Strip Length	7mm
Screw Size	M3
Material Flammability Rating	UL94 V-2
RoHS Status	RoHS Compliant
Lead Free	Lead Free

1838242 Product Details

1838242 Overview

The packaging contains Screw.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number COMBICON PC belongs to the COMBICON PC Series.In many ways, it is more powerful due to its Retention Latches (Non-Wire Side) feature.There is a Free Hanging mount on the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
