Name: 1842102
Brand: Phoenix Contact
SKU: 1842102
Price: 12.45000 USD
Availability: InStock

new

1842102

Manufacturer part number:1842102

Manufacturer:Phoenix Contact

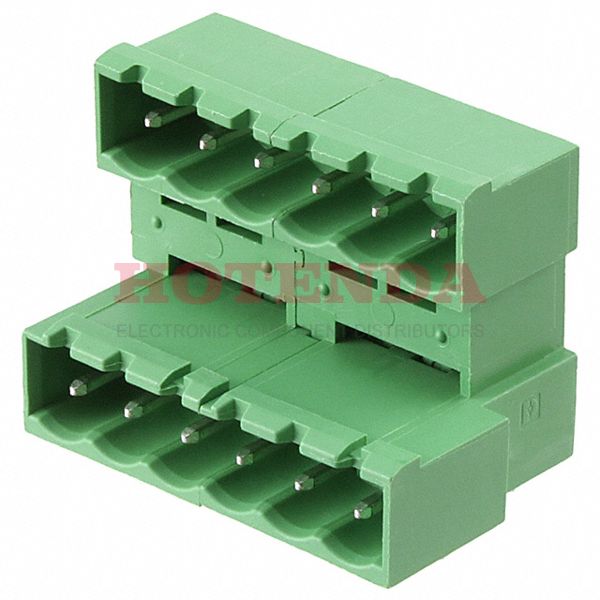

Description:Bulk 0.200 5.08mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MDSTBA Polybutylene Terephthalate (PBT)

Case Package:SOT-23

Datasheet:1842102 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	159.000001g
Packaging	Bulk
Series	COMBICON MDSTBA
Published	2011
Feature	Side Stacking
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	12
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	23.7mm
Insulation Height	0.933 23.70mm
Current Rating	10A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.126 3.20mm
Number of Levels	2
Current	15A
Number of Decks	1
Voltage - IEC	400V
Number of Ways	6
Safety Approval	UL
Header Orientation	90°, Right Angle
Current - IEC	10A
Number of Positions Per Level	6
Height	26.9mm
Length	22.1mm
Width	35.02mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1842102 Product Details

1842102 Overview

It comes in Plug packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the COMBICON MDSTBA Series of products.Its Side Stacking feature renders it more powerful in many ways.The part is mounted by Through Hole.This part shares lots of benefits with other Header, Male Pins, Shrouded (4 Side) products.
