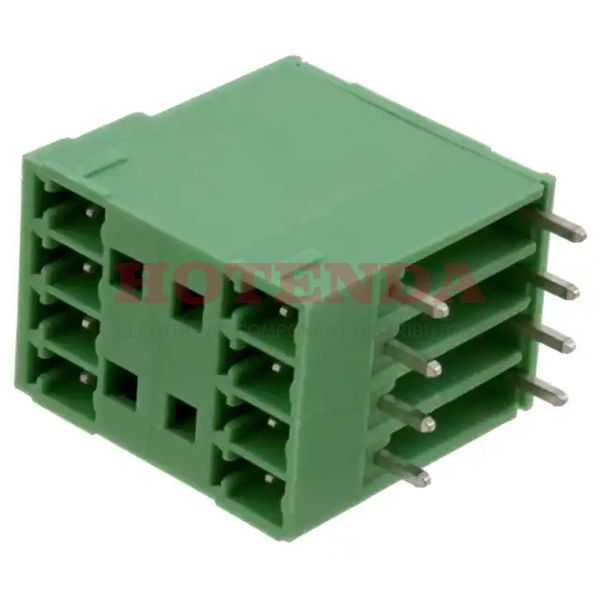

Name: 1843091
Brand: Phoenix Contact
SKU: 1843091
Price: 5.70000 USD
Availability: InStock

new-10%

1843091

Manufacturer part number:1843091

Manufacturer:Phoenix Contact

Description:1843091 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1843091 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	117.000013g
Packaging	Bulk
Published	2003
Series	COMBICON MCD
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Color	Green
Number of Rows	1
Voltage - Rated	160V
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	21.9mm
Insulation Height	0.894 22.71mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	8A
Number of Levels	2
Current	8A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	320V
Number of Ways	4
Safety Approval	UL; VDE; CSA
Header Orientation	90°, Right Angle
Number of Positions Per Level	4
Height	21.9mm
Length	16.63mm
Width	26.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1843091 Product Details

1843091 Overview

You'll get Plug packages.Through Hole is the mounting type of the device.It's packaged in a Bulk case.This product is in the COMBICON MCD Series.Through Hole mounts the part.In addition to its benefits, this part also shares many with the other products in the Header, Male Pins, Shrouded (4 Side) series.
