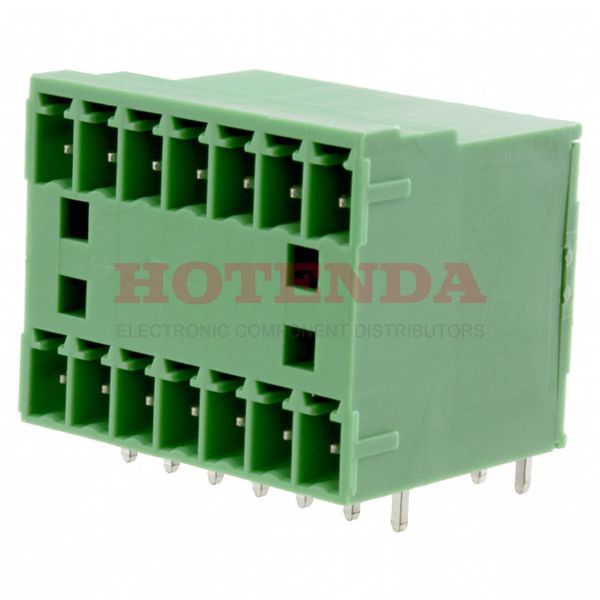

Name: 1843127
Brand: Phoenix Contact
SKU: 1843127
Price: 9.99000 USD
Availability: InStock

new

1843127

Manufacturer part number:1843127

Manufacturer:Phoenix Contact

Description:Bulk 0.150 3.81mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MCD Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1843127 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	117.000013g
Packaging	Bulk
Series	COMBICON MCD
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	14
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	21.9mm
Insulation Height	0.894 22.71mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	8A
Number of Levels	2
Current	8A
Number of Decks	1
Voltage - IEC	320V
Number of Ways	7
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	7
Height	26.2mm
Length	28.06mm
Width	21.9mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1843127 Product Details

1843127 Overview

Packaging for this item is Plug.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON MCD Series.Moreover, there are a number of other features, including PBT, 94V-0, to name just a few.Through Hole is used to mount the part.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
