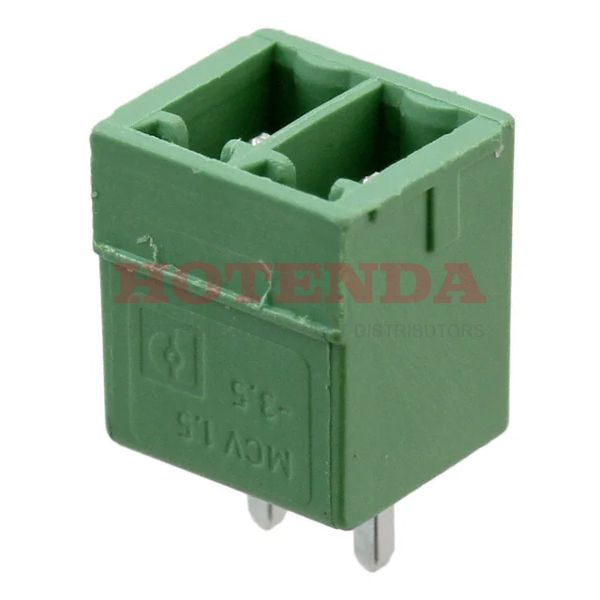

Name: 1843606
Brand: Phoenix Contact
SKU: 1843606
Price: 1.04000 USD
Availability: InStock

new-10%

1843606

Manufacturer part number:1843606

Manufacturer:Phoenix Contact

Description:1843606 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1843606 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2001
Series	COMBICON MCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Gender	Male
HTS Code	8536.69.40.40
Voltage - Rated DC	640mV
Pitch	0.138 3.50mm
Orientation	Straight
Depth	7.25mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Voltage - Rated AC	160V
Approval Agency	CSA, UL
Lead Pitch	3.81mm
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	2
Number of Decks	1
Voltage - IEC	250V
Number of Ways	2
Safety Approval	UL
Header Orientation	Vertical
Fastening Method	CONNECTOR
Height	9.35mm
Length	8.4mm
Width	7.25mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1843606 Product Details

1843606 Overview

It comes in Plug packaging.This device's mounting type is Through Hole.It has been determined that a Bulk case is necessary to package the product.The product is part of the COMBICON MCV Series.-40°C is the minimum temperature for this device.It is mounted by Through Hole.There are a lot of advantages this part has in common with other Header, Male Pins, Shrouded (4 Side) parts.
