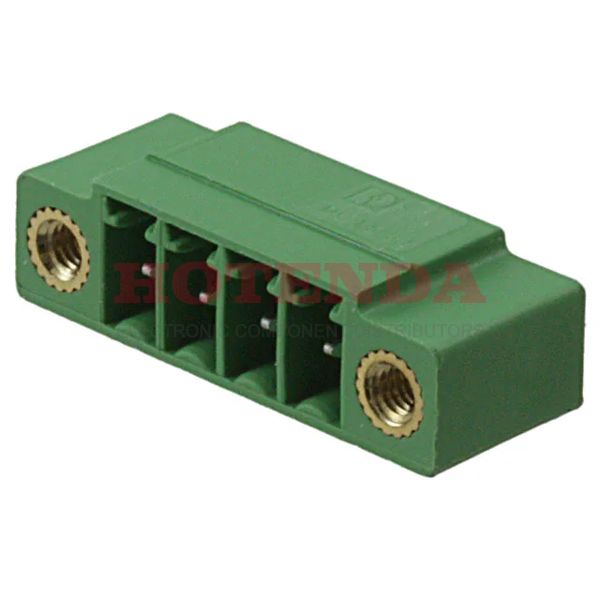

Name: 1843813
Brand: Phoenix Contact
SKU: 1843813
Price: 4.02000 USD
Availability: InStock

new-10%

1843813

Manufacturer part number:1843813

Manufacturer:Phoenix Contact

Description:1843813 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1843813 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2011
Series	COMBICON MC
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	4
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	4
Height	10.65mm
Length	24.3mm
Width	24.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1843813 Product Details

1843813 Overview

The packaging contains Plug.Mounting type Through Hole is assigned to the device.It is necessary to use a Bulk case for packaging the product.Among the products in the COMBICON MC Series, it is one of the most popular.This feature renders it more powerful in a number of ways because of its Mating and Mounting Flange feature.You've got Through Hole mounted on the part.There are many benefits shared between this part and other Header, Male Pins, Shrouded (4 Side) products.
