1844138

1844138

1844138

Phoenix Contact

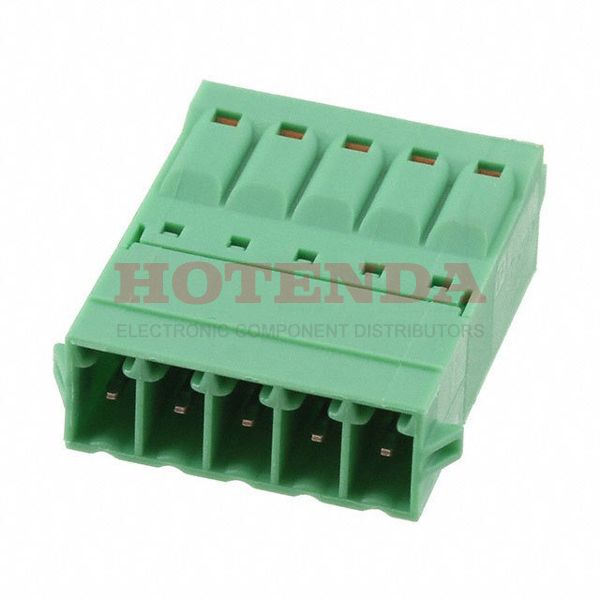

1844138 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1844138 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2016
Series COMBICON IFMC
Feature Locking Ramp
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
Type Plug, Male Pins
Number of Positions 5
Color Green
Pitch 0.138 3.50mm
Insulation Height 0.307 7.80mm
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 150V
Number of Levels 1
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 10mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:851 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$6.71000$6.71
10$6.52800$65.28
50$6.10060$305.03
100$5.61240$561.24
250$5.18544$1296.36
500$4.94144$2470.72

1844138 Product Details

1844138 Overview


There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.The product is part of the COMBICON IFMC Series.This feature renders it more powerful in a number of ways because of its Locking Ramp feature.Mounted by Free Hanging.There are a lot of similarities between this part and other Plug, Male Pins products.

1844138 Features


COMBICON IFMC series

1844138 Applications


There are a lot of Phoenix Contact 1844138 Terminal Blocks applications.

  • Embedded systems
  • Medical technology
  • Control panels
  • Industrial Automation
  • Military Technology
  • Energy efficient lighting (LED)
  • All Electrical Machinery
  • Transportation
  • Electrical substations
  • Measuring & Control Technology
