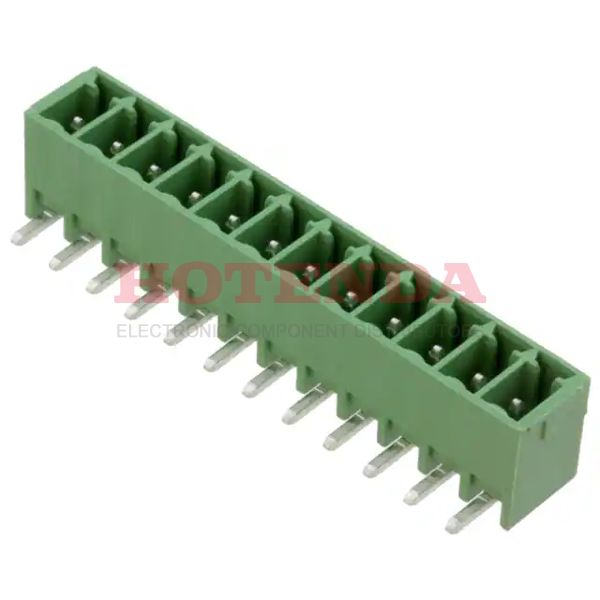

Name: 1844317
Brand: Phoenix Contact
SKU: 1844317
Price: 5.74000 USD
Availability: InStock

new-10%

1844317

Manufacturer part number:1844317

Manufacturer:Phoenix Contact

Description:1844317 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1844317 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2006
Series	COMBICON MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
HTS Code	8536.69.40.40
Voltage - Rated DC	640mV
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CSA, UL
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Poles	12
Number of Decks	1
Voltage - IEC	250V
Number of Ways	12
Header Orientation	90°, Right Angle
Current - IEC	12A
Height	11.1mm
Length	8.4mm
Width	43.4mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1844317 Product Details

1844317 Overview

It comes in a Plug package.Through Hole is the mounting type.A Bulk case is used to package the product.The product is a member of the COMBICON MC Series.This part is mounted by Through Hole. As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
