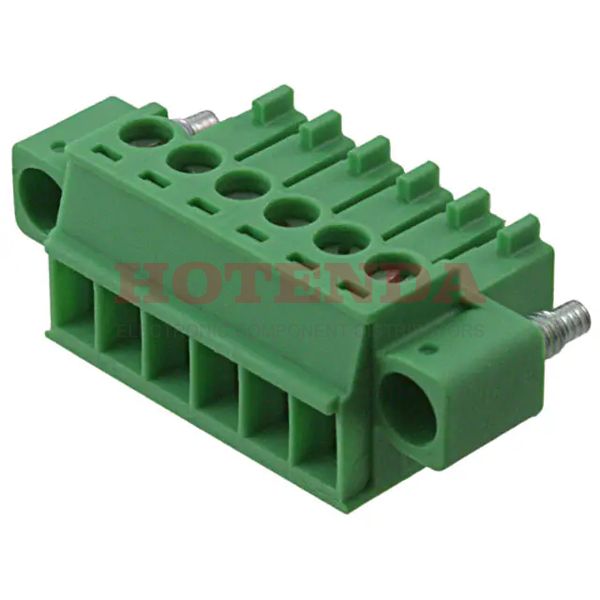

Name: 1847097
Brand: Phoenix Contact
SKU: 1847097
Price: 8.21000 USD
Availability: InStock

new-10%

1847097

Manufacturer part number:1847097

Manufacturer:Phoenix Contact

Description:1847097 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1847097 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	98.999993g
Packaging	Bulk
Published	2011
Series	COMBICON MC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
Pitch	0.138 3.50mm
Orientation	Right Angle
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	6
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Height	16.1mm
Length	11.1mm
Width	31.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1847097 Product Details

1847097 Overview

This product is packaged in a Screw, Socket carton.There is a mounting type of Free Hanging (In-Line) for this device.Packaged in a Bulk case.Among the products in the COMBICON MC Series, it is one of the most popular.Also, there's PA, UL 94V-0, to name a few.This feature renders it more powerful in a number of ways because of its Mating Flange feature.Free Hanging, Panel is mounting the part.Other Plug, Female Sockets products share lots of benefits with this part.
