Name: 1847291
Brand: Phoenix Contact
SKU: 1847291
Price: 26.50000 USD
Availability: InStock

new

1847291

Manufacturer part number:1847291

Manufacturer:Phoenix Contact

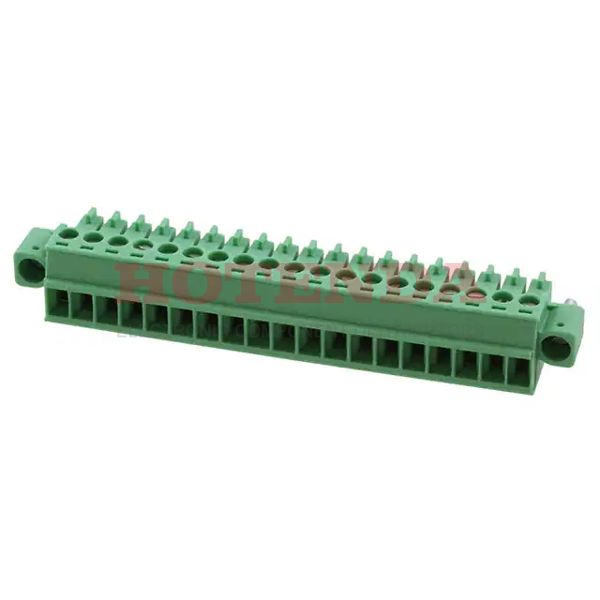

Description:Bulk 0.138 3.50mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MC Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1847291 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	98.999993g
Packaging	Bulk
Published	2014
Series	COMBICON MC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	19
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	19
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Height	16.1mm
Length	11.1mm
Width	76.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1847291 Product Details

1847291 Overview

A Screw, Socket package is included with it.Its mounting type is Free Hanging (In-Line).Packaging is performed using a Bulk case.It is part of the COMBICON MC Series of products.Additionally, there are other features, such as PA, UL 94V-0.A number of features make it more powerful because of its Mating Flange feature.Free Hanging mounts the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
