1847369

1847369

1847369

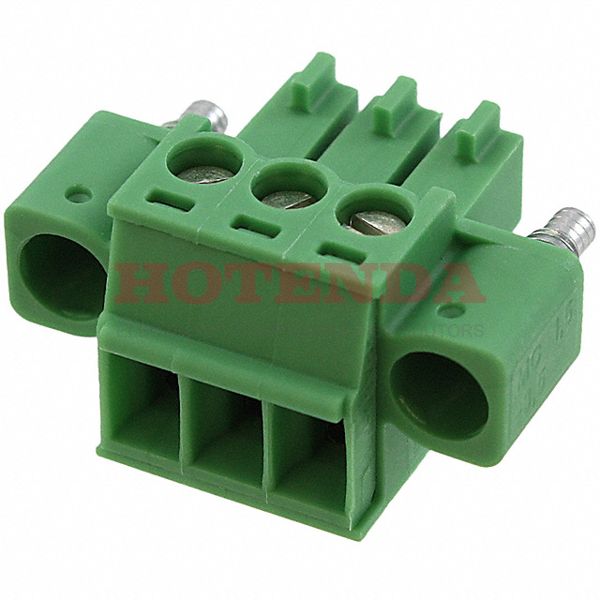

Phoenix Contact

1847369 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1847369 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 11 Weeks
Contact PlatingTin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 105g
PackagingBulk
Published 2010
Series COMBICON MC
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Pitch 0.200 5.08mm
Orientation Straight
Depth 11.1mm
Insulation Height 0.437 11.10mm
Current Rating8A
Termination Style Screw - Rising Cage Clamp
Approval Agency CB, CSA, VDE, cULus
Voltage 300V
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 400V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 3
Safety Approval UL; CSA
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 7mm
Number of Positions Per Level 3
Screw Size M2
Height 15.5mm
Length 24.44mm
Width 15.5mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:1529 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.737000$3.737
10$3.525472$35.25472
100$3.325917$332.5917
500$3.137657$1568.8285
1000$2.960054$2960.054

1847369 Product Details

1847369 Overview


Currently, it is packaged in Screw, Socket.There is a Free Hanging (In-Line) mounting type for the device.A Bulk case is used to package the product.There is a product in the COMBICON MC Series.Its Mating Flange feature renders it more powerful in many ways.Mounted by Cable, Free Hanging.There are a number of benefits that this part has in common with other Plug, Female Sockets products.

1847369 Features


COMBICON MC series

1847369 Applications


There are a lot of Phoenix Contact 1847369 Terminal Blocks applications.

  • Transportation
  • Anywhere power is distributed
  • Variable speed/frequency drivers
  • Automotive Electronics
  • Embedded systems
  • Electrical substations
  • Control panels
  • Medical technology
  • Blowers
  • Instrumentation
