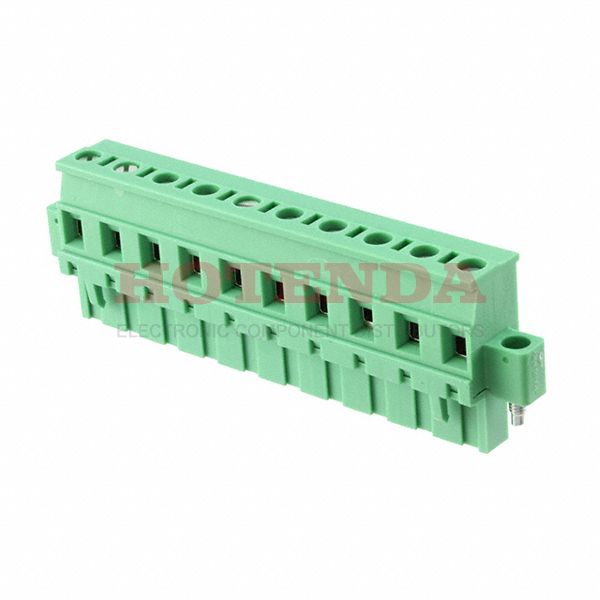

Name: 1847961
Brand: Phoenix Contact
SKU: 1847961
Price: 22.57000 USD
Availability: InStock

new

1847961

Manufacturer part number:1847961

Manufacturer:Phoenix Contact

Description:1847961 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1847961 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	24.179989g
Packaging	Bulk
Published	2010
Series	COMBICON GMVSTBR
Feature	Mating Flange, Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	10
Color	Green
Number of Rows	1
Voltage - Rated	500V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Orientation	Straight
Insulation Height	1.024 26.01mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	10
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	10
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1847961 Product Details

1847961 Overview

A Screw packaging is included.Mounting type is Free Hanging (In-Line).An orange Bulk case is used to package the product.There is a product in the COMBICON GMVSTBR Series.Besides that, there's also PA, 94V-0, to name a few.This feature makes it more powerful in a number of ways due to its Mating Flange, Retention Latches (Wire Side) feature.Mounted by Free Hanging, Panel.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
