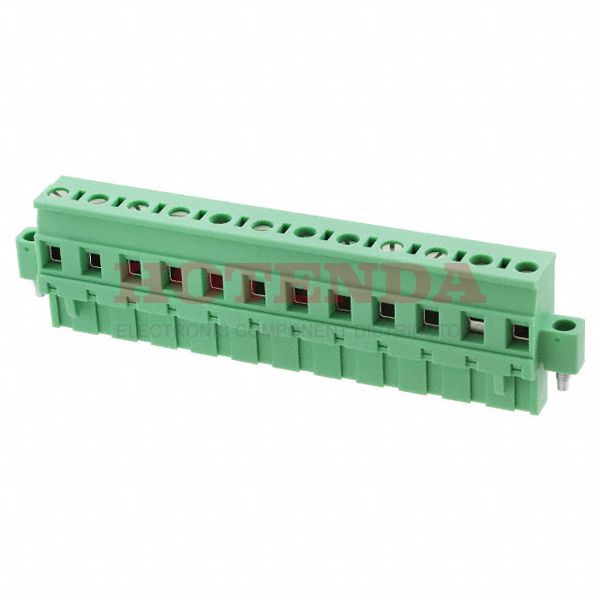

Name: 1847987
Brand: Phoenix Contact
SKU: 1847987
Price: 22.26000 USD
Availability: InStock

new

1847987

Manufacturer part number:1847987

Manufacturer:Phoenix Contact

Description:1847987 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1847987 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	170.097139g
Packaging	Bulk
Published	2011
Series	COMBICON GMVSTBR
Feature	Mating Flange, Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	12
Color	Green
Number of Rows	1
Voltage - Rated	500V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Insulation Height	1.024 26.01mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Wire Cross Section	2.5 mm2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1847987 Product Details

1847987 Overview

Screw packaging is included.The device's mounting type is Free Hanging (In-Line).It has been determined that a Bulk case is necessary to package the product.This product is part of the COMBICON GMVSTBR Series.Additionally, there are other features such as PA, 94V-0.In many ways, Mating Flange, Retention Latches (Wire Side) makes it more powerful.Free Hanging mounts the part.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
