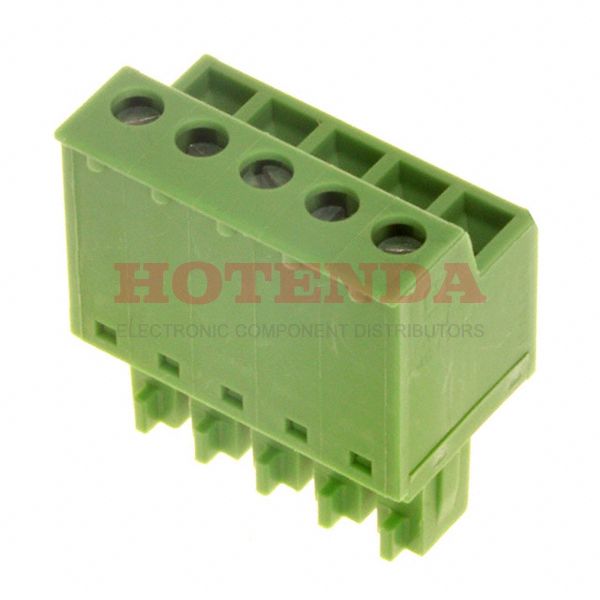

Name: 1850699
Brand: Phoenix Contact
SKU: 1850699
Price: 12.02000 USD
Availability: InStock

new

1850699

Manufacturer part number:1850699

Manufacturer:Phoenix Contact

Description:1850699 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1850699 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	98.999993g
Packaging	Bulk
Published	2011
Series	COMBICON FRONT-MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, 94V-0
Pitch	0.150 3.81mm
Orientation	Straight
Depth	21.7mm
Insulation Height	0.484 12.30mm
Current Rating	8A
Termination Style	Screw - Pressure Clip
Number of Contacts	5
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	5
Safety Approval	CB; CSA; EAC; EN; UL; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Screw Size	M2
Height	19.84mm
Length	19.84mm
Width	21.7mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1850699 Product Details

1850699 Overview

Packaging is in the form of Screw, Socket.This device's mounting type is Free Hanging (In-Line).The product is packaged in a Bulk case.A member of the COMBICON FRONT-MC Series.To name a few, there is also PA, 94V-0.There is a Cable, Free Hanging mount on the part.A supply voltage of 160V is recommended for this chip.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.
