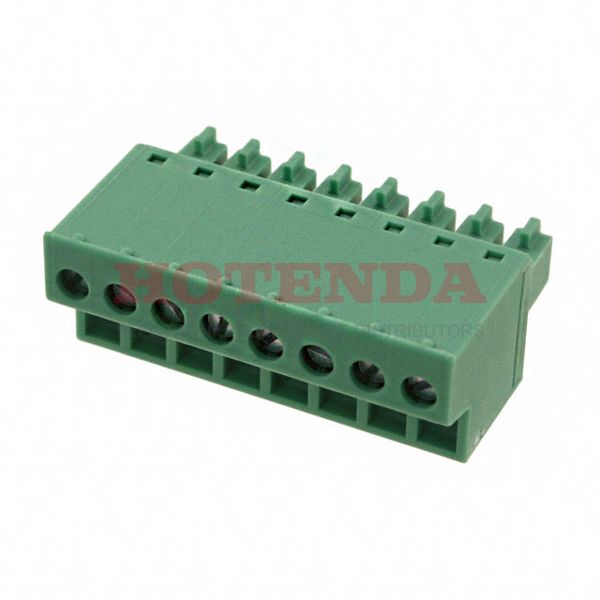

Name: 1850725
Brand: Phoenix Contact
SKU: 1850725
Price: 19.16000 USD
Availability: InStock

new

1850725

Manufacturer part number:1850725

Manufacturer:Phoenix Contact

Description:1850725 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1850725 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	98.999993g
Packaging	Bulk
Published	2010
Series	COMBICON FRONT-MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	STANDARD: UL 94V-0, PA, APPROVAL: VDE
Pitch	0.150 3.81mm
Orientation	Straight
Insulation Height	0.484 12.30mm
Current Rating	8A
Termination Style	Screw - Pressure Clip
Number of Contacts	8
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	8
Safety Approval	CB; CCA; CSA; CUL; EAC; UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Screw Size	M2
Height	21.7mm
Length	12.3mm
Width	31.27mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1850725 Product Details

1850725 Overview

The product comes in a package of Screw, Socket.This device's mounting type is Free Hanging (In-Line).A Bulk case is used to package the product.There is a product in the COMBICON FRONT-MC Series.Other features include STANDARD: UL 94V-0, PA, APPROVAL: VDE, to name just a few.There's a Cable, Free Hanging mount on the part.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
