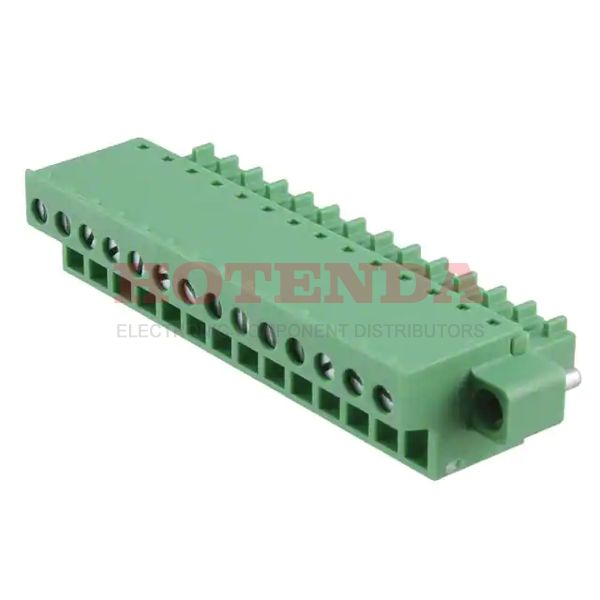

Name: 1850974
Brand: Phoenix Contact
SKU: 1850974
Price: 33.73000 USD
Availability: InStock

new

1850974

Manufacturer part number:1850974

Manufacturer:Phoenix Contact

Description:1850974 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1850974 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	98.999993g
Packaging	Bulk
Published	2010
Series	COMBICON FRONT-MC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Insulation Height	0.484 12.30mm
Current Rating	8A
Termination Style	Screw - Pressure Clip
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Wire Gauge or Range - AWG	16-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	14
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Number of Positions Per Level	14
Screw Size	M2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1850974 Product Details

1850974 Overview

The product is packaged in Screw.A Free Hanging (In-Line) mounting type is specified for the device.To package the product, a Bulk case is used.Among the products in the COMBICON FRONT-MC Series, it is one of the most popular.Among other features are PA, 94V-0, to name only a few.As a result of its Mating Flange feature, it possesses a great deal of power.This part is mounted by Free Hanging. Other Plug, Female Sockets products benefit from this part as well.
