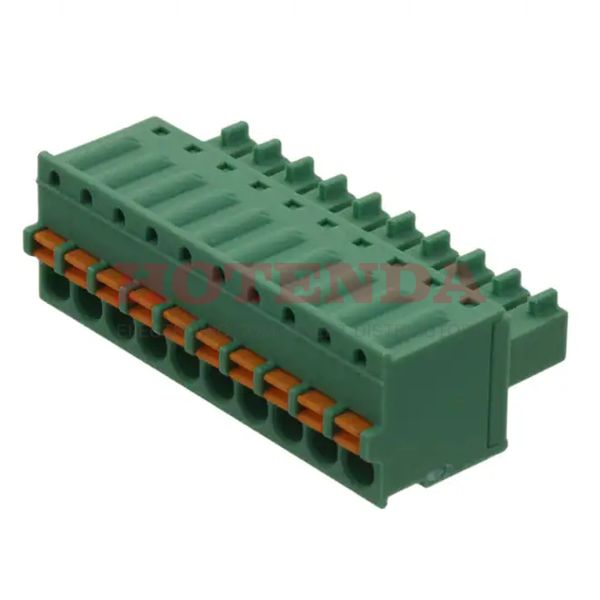

Name: 1851122
Brand: Phoenix Contact
SKU: 1851122
Price: 21.21000 USD
Availability: InStock

new

1851122

Manufacturer part number:1851122

Manufacturer:Phoenix Contact

Description:1851122 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1851122 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	101.999997g
Packaging	Bulk
Published	2003
Series	COMBICON FK-MCP
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Insulation Height	0.488 12.40mm
Current Rating	8A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Number of Ways	10
Safety Approval	CB; CCA; CSA; CUL; EAC; UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	9mm
Number of Positions Per Level	10
Fastening Method	SPRING LOADED
Height	12.4mm
Length	38.9mm
Width	20.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1851122 Product Details

1851122 Overview

Free Hanging (In-Line) is the mounting type of the device.We use a Bulk case to package the product.Among the products in the COMBICON FK-MCP Series, it is one of the most popular.As well as STANDARD: UL 94V-0, PA, SAFETY APPROVAL: VDE, to name a few.It's mounted by Free Hanging.There are a lot of similarities between this part and other Plug, Female Sockets products.
