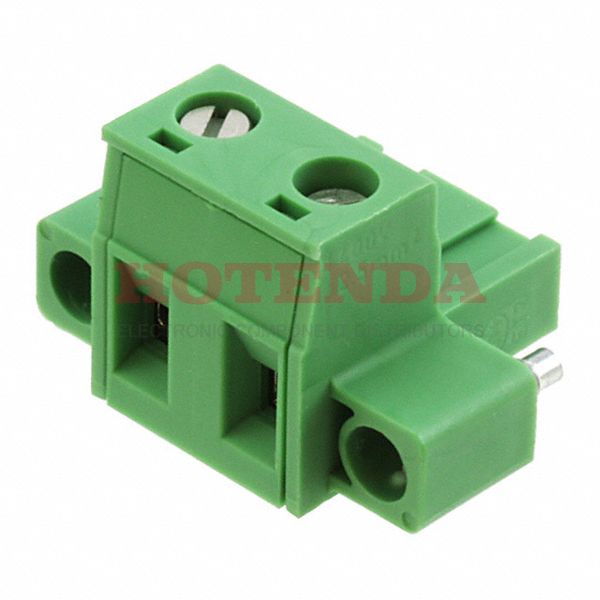

Name: 1858769
Brand: Phoenix Contact
SKU: 1858769
Price: 4.41000 USD
Availability: InStock

new-10%

1858769

Manufacturer part number:1858769

Manufacturer:Phoenix Contact

Description:1858769 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1858769 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	167.00001g
Packaging	Bulk
Published	2012
Series	COMBICON GMSTB
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Number of Positions	2
Color	Green
Voltage - Rated	400V
HTS Code	8536.69.40.40
Pitch	0.300 7.62mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	not_compliant
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	1kV
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Height	18.2mm
Length	15mm
Width	25.63mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1858769 Product Details

1858769 Overview

Currently, it is packaged in Screw, Socket.Free Hanging (In-Line) is the mounting type.It has been determined that a Bulk case is necessary to package the product.The product is part of the COMBICON GMSTB Series.This feature makes it more powerful in a number of ways due to its Mating Flange feature.There's a Free Hanging mount on the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
