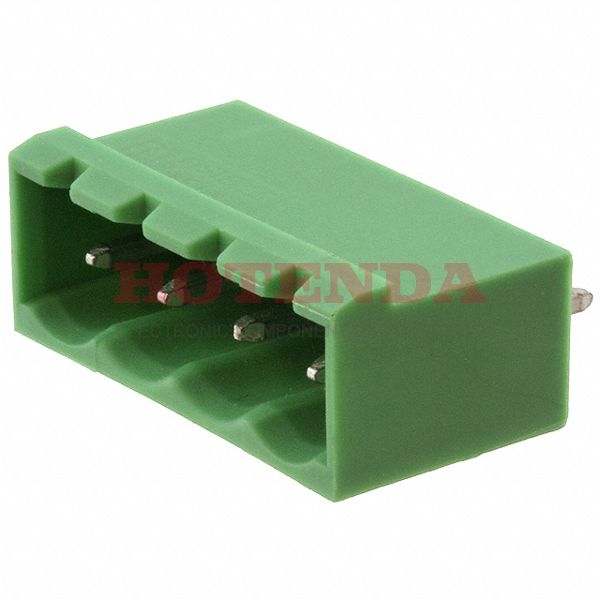

Name: 1859535
Brand: Phoenix Contact
SKU: 1859535
Availability: InStock

new-10%

1859535

Manufacturer part number:1859535

Manufacturer:Phoenix Contact

Description:1859535 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1859535 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	150.999993g
Packaging	Bulk
Published	2005
Series	COMBICON EMSTBVA
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	200V
Voltage - Rated DC	320V
Pitch	0.200 5.08mm
Depth	8.6mm
Insulation Height	0.472 12.00mm
Current Rating	12A
Termination Style	Press-Fit
Approval Agency	UL
Voltage	300V
Contact Tail Length	0.154 3.90mm
Max Current Rating	12A
Number of Levels	1
Current	12A
Number of Poles	4
Voltage - UL	300V
Number of Decks	1
Number of Ways	4
Safety Approval	UL
Header Orientation	Vertical
Height	15.9mm
Length	22.32mm
Width	22.32mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1859535 Product Details

1859535 Overview

You'll get Plug packages.The mounting type of the device is Through Hole.Packaged in a Bulk case.This is from the COMBICON EMSTBVA Series.You've got Through Hole mounted on the part.There are a lot of advantages this part has in common with other Header, Male Pins, Shrouded (4 Side) parts.
