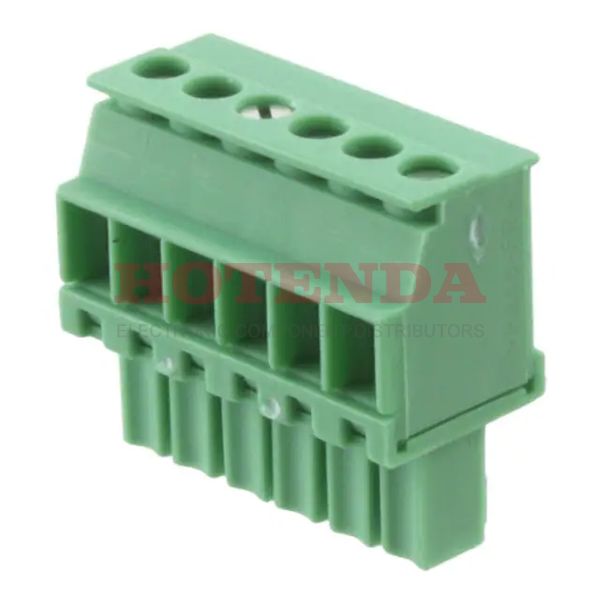

1862894

1862894

1862894

Phoenix Contact

1862894 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1862894 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide
Housing Material Polyamide (PA), Nylon
Weight 4.620008g
PackagingBulk
Published 2008
Series COMBICON MCVW
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 160V
Additional FeaturePA, 94V-0
Pitch 0.138 3.50mm
Orientation Straight
Depth 19.1mm
Insulation Height 0.752 19.10mm
Current Rating8A
Termination Style Screw - Rising Cage Clamp
Voltage - Rated AC 160V
Approval Agency UL, VDE, cULus
Lead Pitch 3.5mm
Number of Contacts 6
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 14 AWG
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 6
Safety Approval UL
Plug Wire Entry 270°
Wire Gauge or Range - mm² 0.14-1.5mm2
Screw Size M2
Stripping Length 7mm
Height 12.5mm
Length 21.8mm
Width 10.4mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:908 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$7.18000$7.18
10$6.98800$69.88
50$6.53100$326.55
100$6.00850$600.85
250$5.55140$1387.85
500$5.29014$2645.07

1862894 Product Details

1862894 Overview


It comes in Screw, Socket packaging.Free Hanging (In-Line) indicates that the device is mounted.We use a Bulk case to package the product.COMBICON MCVW Series product.There are also features like PA, 94V-0, just to name a few.Cable, Free Hanging is the mounting point for the part.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.

1862894 Features


COMBICON MCVW series

1862894 Applications


There are a lot of Phoenix Contact 1862894 Terminal Blocks applications.

  • Military Technology
  • LED municipal outdoor and street lighting
  • Telecommunications
  • Transportation
  • Medical technology
  • Energy efficient lighting (LED)
  • Control panels
  • Instrumentation
  • All Electrical Machinery
  • Data Technology
