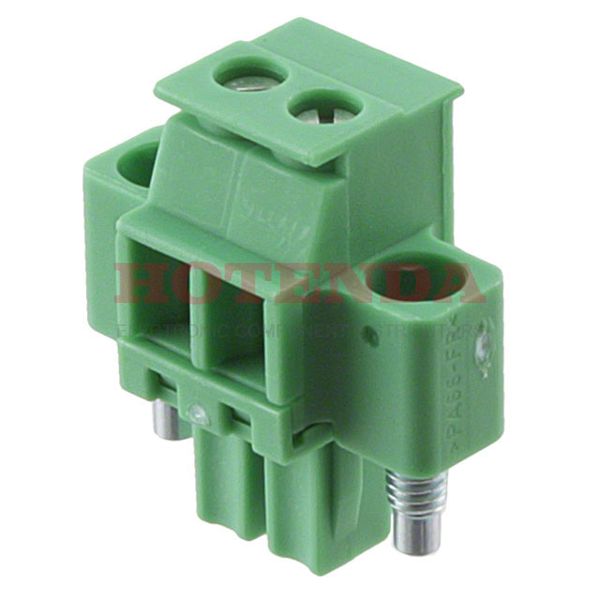

Name: 1863000
Brand: Phoenix Contact
SKU: 1863000
Price: 2.54000 USD
Availability: InStock

new-10%

1863000

Manufacturer part number:1863000

Manufacturer:Phoenix Contact

Description:1863000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1863000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	2.460002g
Packaging	Bulk
Published	2009
Series	COMBICON MCVW
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Straight
Insulation Height	0.752 19.10mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	2
Safety Approval	UL; CSA
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	2
Screw Size	M2
Length	3.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1863000 Product Details

1863000 Overview

Screw packaging is included.This device has a mounting type of Free Hanging (In-Line).In order to package the product, a Bulk case is used.A member of the COMBICON MCVW Series.This feature makes it more powerful in a number of ways due to its Mating Flange feature.Mounted by Cable, Free Hanging.
