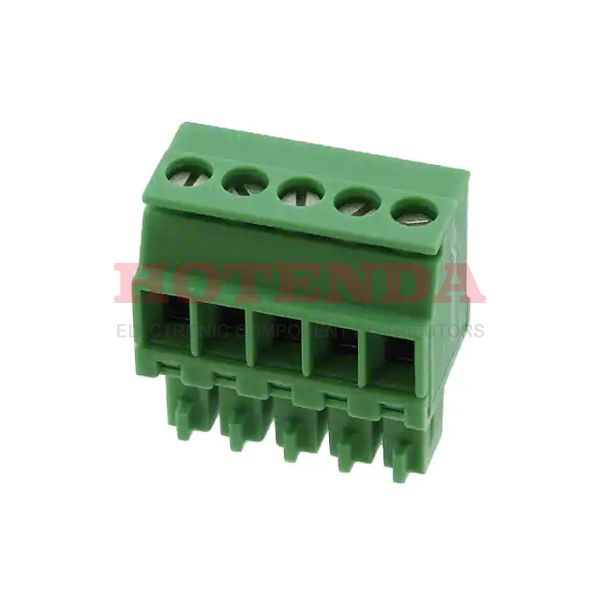

Name: 1863181
Brand: Phoenix Contact
SKU: 1863181
Price: 6.61000 USD
Availability: InStock

new-10%

1863181

Manufacturer part number:1863181

Manufacturer:Phoenix Contact

Description:1863181 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1863181 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	3.820013g
Packaging	Bulk
Published	2012
Series	COMBICON MCVR
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Additional Feature	PA, 94V-0
Voltage - Rated DC	160V
Pitch	0.138 3.50mm
Orientation	Straight
Depth	19.1mm
Insulation Height	0.752 19.10mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Approval Agency	CB, UL, VDE, cULus
Lead Pitch	3.5mm
Number of Contacts	5
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Stripping Length	7mm
Height	12.5mm
Length	10.4mm
Width	19.1mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1863181 Product Details

1863181 Overview

The packaging is Screw, Socket.The mounting type of the device is Free Hanging (In-Line).Bulk cases are used to package the product.This is from the COMBICON MCVR Series.Further, there are features such as PA, 94V-0, to name only a few.Cable, Free Hanging is mounting the part.Other Plug, Female Sockets products share lots of benefits with this part.
