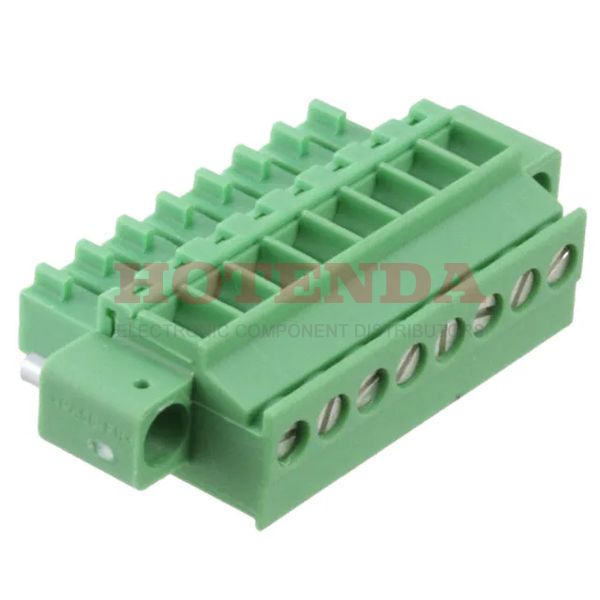

1863369

1863369

1863369

Phoenix Contact

1863369 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1863369 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 6.749993g
PackagingBulk
Published 2010
Series COMBICON MCVR
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional FeaturePA, 94V-0
Pitch 0.138 3.50mm
Orientation Straight
Insulation Height 0.752 19.10mm
Current Rating8A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 8
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 28 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 14-30 AWG
Voltage - IEC 320V
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways 8
Safety Approval UL
Plug Wire Entry 90°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 7mm
Screw Size M2
Height 12.5mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:700 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$9.719000$9.719
10$9.168868$91.68868
100$8.649875$864.9875
500$8.160260$4080.13
1000$7.698358$7698.358

1863369 Product Details

1863369 Overview


A Screw packaging is included.Mounting type Free Hanging (In-Line) is assigned to the device.In order to package the product, a Bulk case is used.As a product of the COMBICON MCVR Series, it can be found in this category.Then there's PA, 94V-0, for example.As a result of its Mating Flange feature, it possesses a great deal of power.It is mounted by Free Hanging, Panel.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.

1863369 Features


COMBICON MCVR series

1863369 Applications


There are a lot of Phoenix Contact 1863369 Terminal Blocks applications.

  • Anywhere power is distributed
  • Variable speed/frequency drivers
  • Automotive Electronics
  • Industrial Automation
  • Datacom
  • Instrumentation
  • Embedded systems
  • All Electrical Machinery
  • Electrical substations
  • Blowers
