Name: 1868131
Brand: Phoenix Contact
SKU: 1868131
Price: 2.63000 USD
Availability: InStock

new-10%

1868131

Manufacturer part number:1868131

Manufacturer:Phoenix Contact

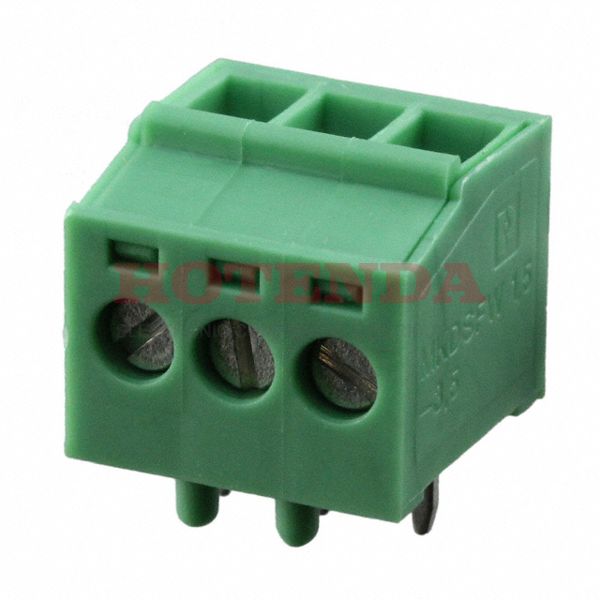

Description:0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON MKDSFW

Case Package:SOT-23

Datasheet:1868131 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Number of Pins	3
Housing Material	Polyamide (PA), Nylon
Weight	38.000013g
Packaging	Bulk
Series	COMBICON MKDSFW
Published	2011
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Connector Type	Screw
Number of Positions	3
Color	Green
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Right Angle
Current Rating	12A
Number of Contacts	3
Housing Color	Green
Wire Gauge	14-30 AWG
Voltage	300V
Number of Circuits	3
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Positions Per Level	3
Mating Orientation	Vertical with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M2
Number of Positions Per Level	3
Height	11.8mm
Length	11.3mm
Width	13.4mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1868131 Product Details

1868131 Overview

The product is packaged in Screw.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON MKDSFW Series.A total of 3 pins are available on the device.Part Through Hole is mounted to the part.It consists of circuits with a 3 value.
