Name: 1868759
Brand: Phoenix Contact
SKU: 1868759
Price: 2.11000 USD
Availability: InStock

new-10%

1868759

Manufacturer part number:1868759

Manufacturer:Phoenix Contact

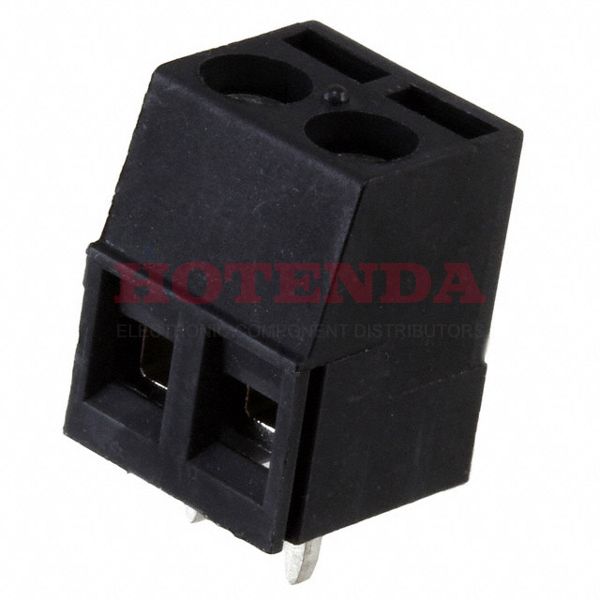

Description:0.200 5.08mm Black Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Rising Cage Clamp 1 Levels 14-30 AWG COMBICON MKDS

Case Package:SOT-23

Datasheet:1868759 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	31.000005g
Packaging	Bulk
Series	COMBICON MKDS
Published	2010
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Color	Black
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Current Rating	17.5A
Wire Gauge	14-30 AWG
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	2
Safety Approval	UL
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Number of Positions Per Level	2
Length	11.6mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1868759 Product Details

1868759 Overview

Packaging is in the form of Screw.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MKDS Series.Other features include PA, 94V-0, to name just a few.Several benefits come from the Interlocking (Side) feature.There is a mounting hole at Through Hole.
