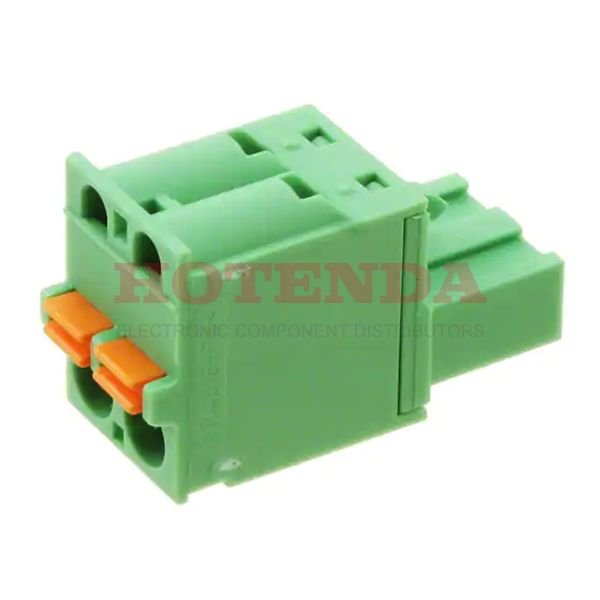

Name: 1873058
Brand: Phoenix Contact
SKU: 1873058
Price: 2.61000 USD
Availability: InStock

new-10%

1873058

Manufacturer part number:1873058

Manufacturer:Phoenix Contact

Description:1873058 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1873058 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	138.000007g
Packaging	Bulk
Published	2010
Series	COMBICON FKC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	25.6mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage - Rated AC	250V
Approval Agency	CB, VDE, cULus
Number of Contacts	2
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Fastening Method	SPRING LOADED
Height	10.15mm
Length	10.78mm
Width	14.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1873058 Product Details

1873058 Overview

A Socket packaging is included.Mounting type Free Hanging (In-Line) is selected for the device.The product is packaged in a Bulk case.This product is from the COMBICON FKC Series.In addition, there are other features such as PA, 94V-0, to mention only a few.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.This part is mounted by Free Hanging. A voltage greater than 250V should not be applied to this chip.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.
