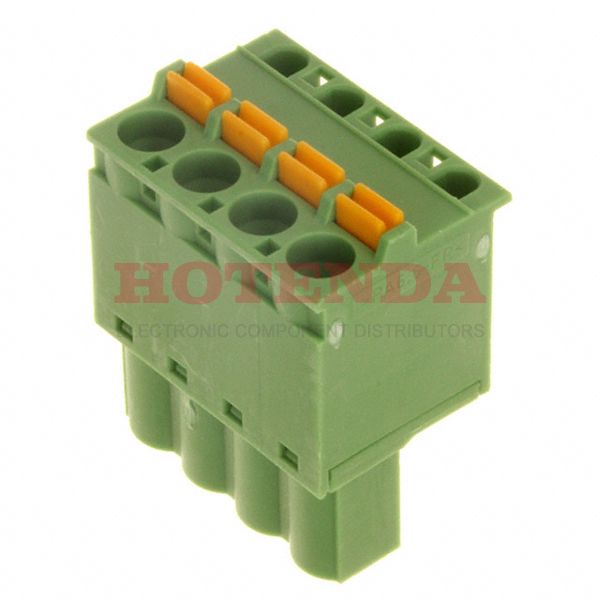

Name: 1873074
Brand: Phoenix Contact
SKU: 1873074
Price: 5.22000 USD
Availability: InStock

new-10%

1873074

Manufacturer part number:1873074

Manufacturer:Phoenix Contact

Description:1873074 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1873074 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	138.000007g
Packaging	Bulk
Published	2010
Series	COMBICON FKC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	25.6mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CB, VDE, cULus
Number of Contacts	4
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	20.94mm
Length	20.94mm
Width	25.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1873074 Product Details

1873074 Overview

You'll get Socket packages.This device's mounting type is Free Hanging (In-Line).Packaging for the product is carried out via a Bulk case.Among the products in the COMBICON FKC Series, it is one of the most popular.This feature renders it more powerful in a number of ways because of its Retention Latches (Non-Wire Side) feature.Cable, Free Hanging represents the mounting point for the part.This chip should not be supplied with voltage greater than 250V volts.Other Plug, Female Sockets products share lots of benefits with this part.
