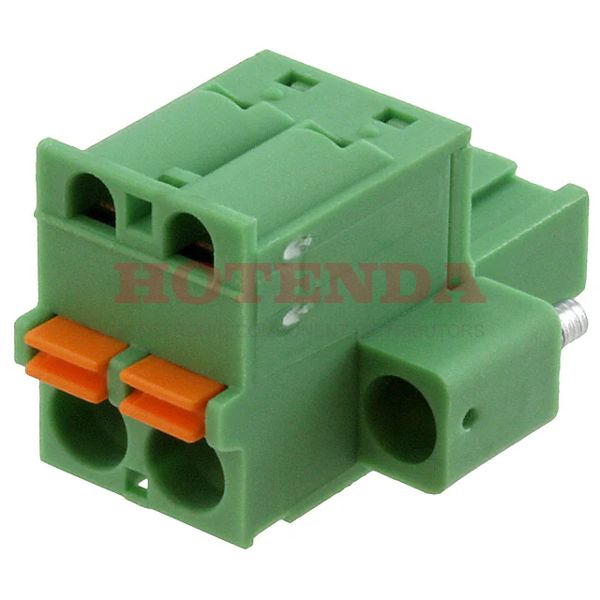

Name: 1873207
Brand: Phoenix Contact
SKU: 1873207
Price: 3.05000 USD
Availability: InStock

new-10%

1873207

Manufacturer part number:1873207

Manufacturer:Phoenix Contact

Description:1873207 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1873207 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	4.859987g
Packaging	Bulk
Published	2011
Series	COMBICON FKC
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Depth	25.6mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage - Rated AC	250V
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Number of Positions Per Level	2
Fastening Method	SPRING LOADED
Height	20.26mm
Length	20.26mm
Width	25.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1873207 Product Details

1873207 Overview

You get it in Socket packaging.The device's mounting type is Free Hanging (In-Line).It has been determined that a Bulk case is necessary to package the product.This product is from the COMBICON FKC Series.Furthermore, there are other features available, such as PA, 94V-0, to name a few.In many ways, its Mating Flange, Retention Latches (Non-Wire Side) feature makes it more powerful.Free Hanging is the mounting point for the part.It is recommended that this chip's supply voltage does not exceed 250V.Other Plug, Female Sockets products benefit from this part as well.
