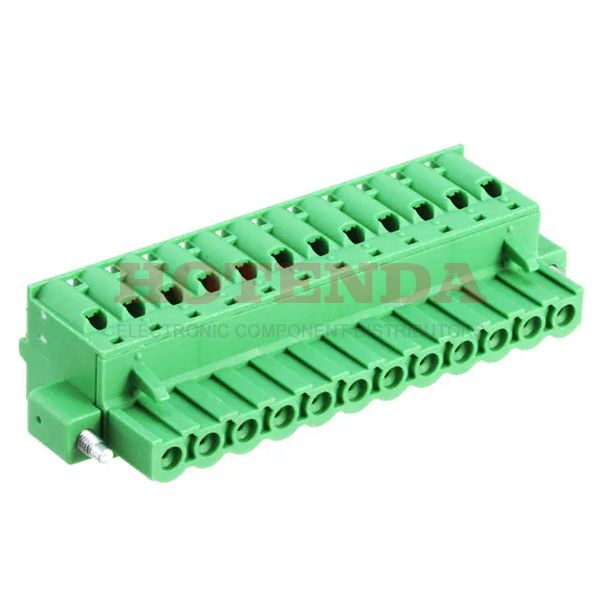

Name: 1873304
Brand: Phoenix Contact
SKU: 1873304
Price: 17.34000 USD
Availability: InStock

new

1873304

Manufacturer part number:1873304

Manufacturer:Phoenix Contact

Description:1873304 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1873304 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	20.83999g
Packaging	Bulk
Published	2009
Series	COMBICON FKC
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	12
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	25.6mm
Length	15mm
Width	71.06mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1873304 Product Details

1873304 Overview

A Socket packaging is included.Free Hanging (In-Line) is the mounting type of the device.Bulk cases are used to package the product.This product is part of the COMBICON FKC Series.Among other features are PA, 94V-0, to name only a few.As a result of its Mating Flange, Retention Latches (Non-Wire Side) feature, it possesses a great deal of power.Free Hanging is the mounting point for the part.There are a lot of similarities between this part and other Plug, Female Sockets products.
