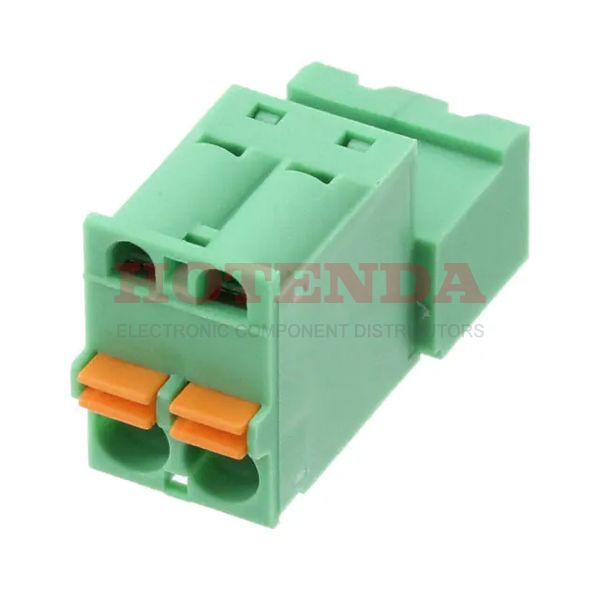

Name: 1873359
Brand: Phoenix Contact
SKU: 1873359
Price: 3.29000 USD
Availability: InStock

new-10%

1873359

Manufacturer part number:1873359

Manufacturer:Phoenix Contact

Description:1873359 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1873359 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	3.460003g
Packaging	Bulk
Published	2011
Series	COMBICON FKIC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Male Pins
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	320V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Number of Positions Per Level	2
Fastening Method	SPRING LOADED
Height	15mm
Length	12.16mm
Width	27mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1873359 Product Details

1873359 Overview

The product comes in a package of Plug.There is a Free Hanging (In-Line) mounting type for the device.Packaging is performed using a Bulk case.The product belongs to the COMBICON FKIC Series.There are also other features such as PA, 94V-0, to name only a few.Free Hanging mounts the part.There are many benefits that this part shares with other Plug, Male Pins products as well.
