Name: 1873553
Brand: Phoenix Contact
SKU: 1873553
Price: 10.77000 USD
Availability: InStock

new

1873553

Manufacturer part number:1873553

Manufacturer:Phoenix Contact

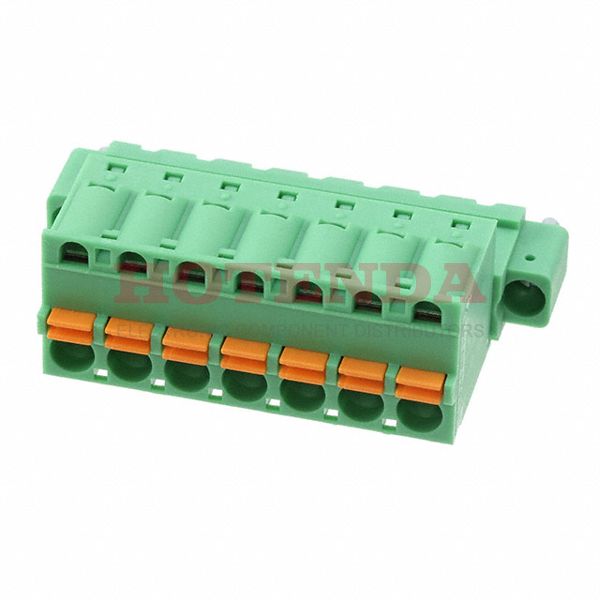

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Male Pins COMBICON FKIC Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1873553 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	11.870002g
Packaging	Bulk
Series	COMBICON FKIC
Published	2011
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Plug
Type	Plug, Male Pins
Number of Positions	7
Color	Green
Number of Rows	1
Voltage - Rated	320V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Number of Ways	7
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	27mm
Length	15mm
Width	45.64mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1873553 Product Details

1873553 Overview

This product is packaged in a Plug box.Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the COMBICON FKIC Series.Furthermore, there are other features such as PA, 94V-0, to name a few.In many ways, Mating Flange makes it more powerful.By Free Hanging, the part is mounted.It is a part that shares many benefits with other products from the Plug, Male Pins line.
