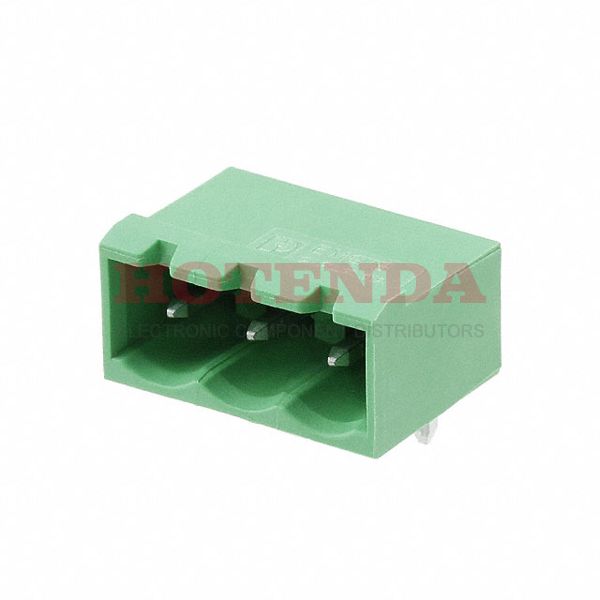

Name: 1880313
Brand: Phoenix Contact
SKU: 1880313
Availability: InStock

new-10%

1880313

Manufacturer part number:1880313

Manufacturer:Phoenix Contact

Description:1880313 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1880313 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	1.529995g
Packaging	Bulk
Published	2011
Series	COMBICON EMSTBA
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PBT, UL 94V-0
Pitch	0.200 5.08mm
Insulation Height	0.339 8.61mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Press-Fit
Voltage	300V
Contact Tail Length	0.165 4.19mm
Number of Levels	1
Current	15A
Number of Decks	1
Voltage - IEC	400V
Number of Ways	3
Safety Approval	UL
Header Orientation	90°, Right Angle
Current - IEC	12A
Height	12.8mm
Length	12mm
Width	17.24mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1880313 Product Details

1880313 Overview

This product is packaged in a Plug box.This device has a mounting type of Through Hole.It's packaged in a Bulk case.The product is part of the COMBICON EMSTBA Series.Among other features are PBT, UL 94V-0, to name only a few.Through Hole is the mounting point for the part.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
