Name: 1900811
Brand: Phoenix Contact
SKU: 1900811
Price: 8.43000 USD
Availability: InStock

new-10%

1900811

Manufacturer part number:1900811

Manufacturer:Phoenix Contact

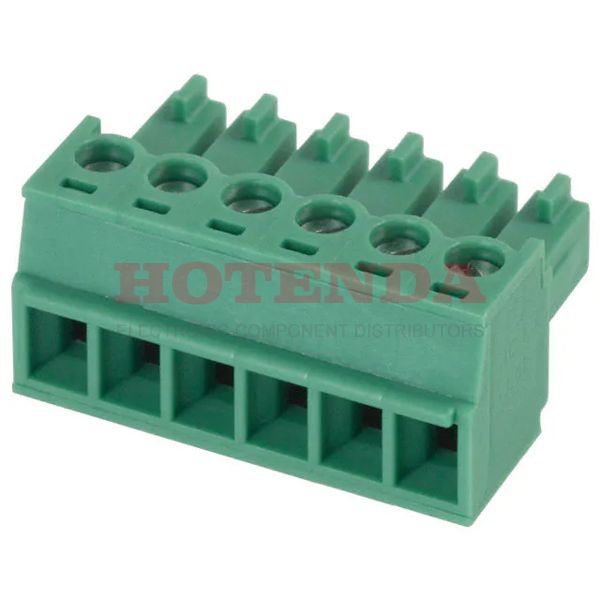

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MC Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1900811 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	4.449996g
Packaging	Bulk
Series	COMBICON MC
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, UL 94V0
Pitch	0.200 5.08mm
Depth	11.1mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	16 AWG
Wire Gauge (Min)	28 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	630V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	6
Screw Size	M2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1900811 Product Details

1900811 Overview

This product is packaged in a Screw cartonThis device's mounting type is Free Hanging (In-Line).It's packaged in a Bulk case.COMBICON MC Series product.There are also features like PA, UL 94V0, just to name a few.Free Hanging is mounting the part.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
