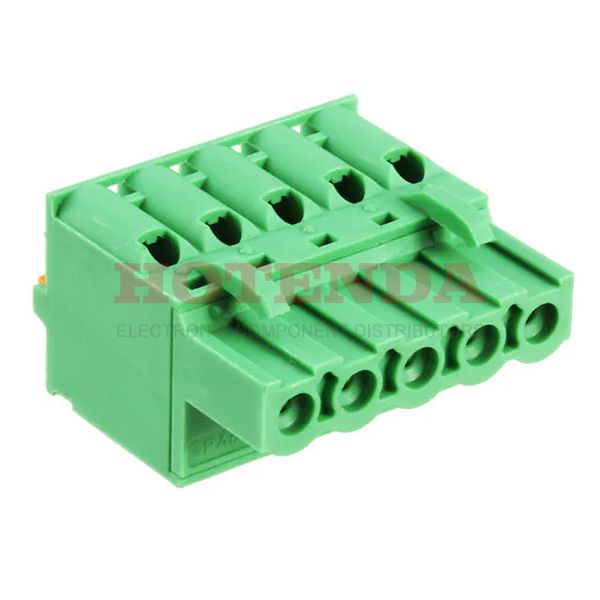

1902149

1902149

1902149

Phoenix Contact

1902149 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1902149 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 8.490002g
PackagingBulk
Published 2003
Series COMBICON FKCT
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional FeaturePA, 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 5
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 5
Fastening Method SPRING LOADED
Height 25.5mm
Length 15mm
Width 25.6mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:955 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$6.60000$6.6
10$6.41500$64.15
50$5.99560$299.78
100$5.51590$551.59
250$5.09620$1274.05
500$4.85638$2428.19

1902149 Product Details

1902149 Overview


A Socket package is included with it.Its mounting type is Free Hanging (In-Line).We package the product with a Bulk case.It's part of the COMBICON FKCT Series.Besides that, there's also PA, 94V-0, to name a few.A number of advantages can be derived from its Retention Latches (Non-Wire Side) feature.It's mounted by Free Hanging.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.

1902149 Features


COMBICON FKCT series

1902149 Applications


There are a lot of Phoenix Contact 1902149 Terminal Blocks applications.

  • LED municipal outdoor and street lighting
  • Energy efficient lighting (LED)
  • Control panels
  • Datacom
  • Anywhere power is distributed
  • Medical technology
  • Transportation
  • Military Technology
  • Measuring & Control Technology
  • Telecommunications
