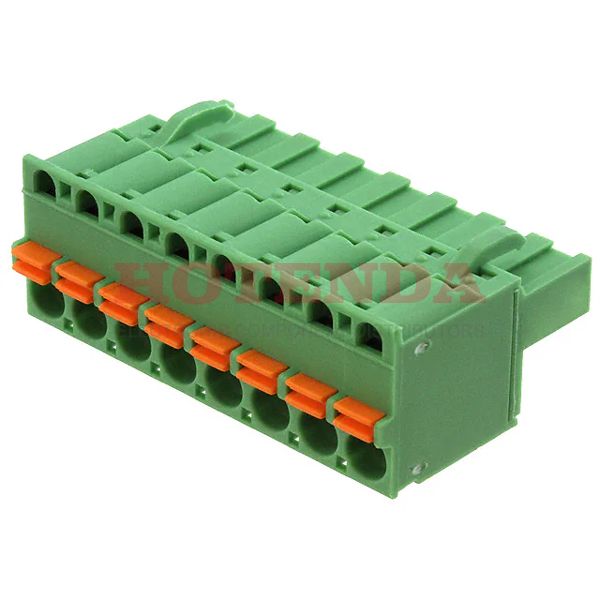

1902178

1902178

1902178

Phoenix Contact

1902178 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1902178 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 13.650012g
PackagingBulk
Published 2003
Series COMBICON FKCT
Feature Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional FeaturePA, 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screwless - Leg Spring, Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 8
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Height 25.6mm
Length 15mm
Width 40.74mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:626 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$10.82000$10.82
10$10.52700$105.27
50$9.83860$491.93
100$9.05150$905.15
250$8.36280$2090.7
500$7.96922$3984.61

1902178 Product Details

1902178 Overview


This product is packaged in a Socket carton.Free Hanging (In-Line) is the mount type.A Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON FKCT Series.As well as PA, 94V-0, to name a few.As a result of its Retention Latches (Non-Wire Side) feature, it possesses a great deal of power.This part is mounted by Free Hanging. It is a part that shares many benefits with other products from the Plug, Female Sockets line.

1902178 Features


COMBICON FKCT series

1902178 Applications


There are a lot of Phoenix Contact 1902178 Terminal Blocks applications.

  • Variable speed/frequency drivers
  • Military Technology
  • Telecommunications
  • Energy efficient lighting (LED)
  • Refrigeration control
  • Medical technology
  • Transportation
  • Electrical substations
  • Data Technology
  • All Electrical Machinery
