Name: 1902275
Brand: Phoenix Contact
SKU: 1902275
Price: 26.87000 USD
Availability: InStock

new

1902275

Manufacturer part number:1902275

Manufacturer:Phoenix Contact

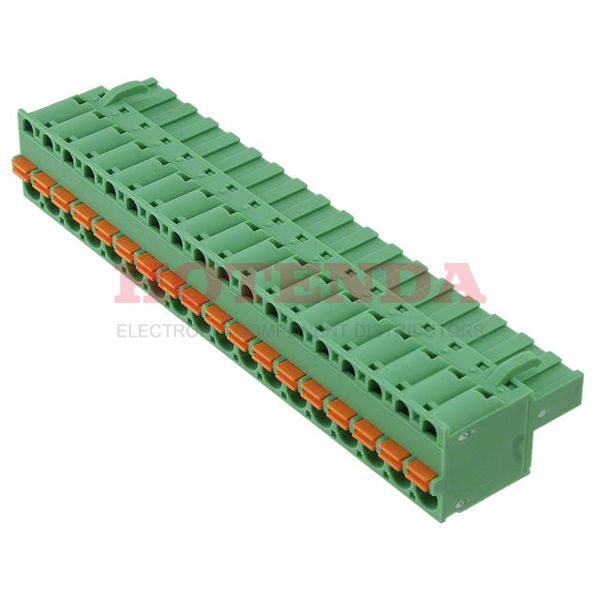

Description:Bulk 0.200 5.08mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON FKCT Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1902275 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	29.580006g
Packaging	Bulk
Series	COMBICON FKCT
Published	2010
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Number of Positions	18
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	630V
Number of Ways	18
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	12A
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	25.6mm
Length	15mm
Width	91.54mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1902275 Product Details

1902275 Overview

The product comes in a package of Socket.Free Hanging (In-Line) is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON FKCT Series.Among other features are PA, 94V-0, to name only a few.It is more powerful in many ways due to its Retention Latches (Non-Wire Side) feature.It is mounted by Free Hanging.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
