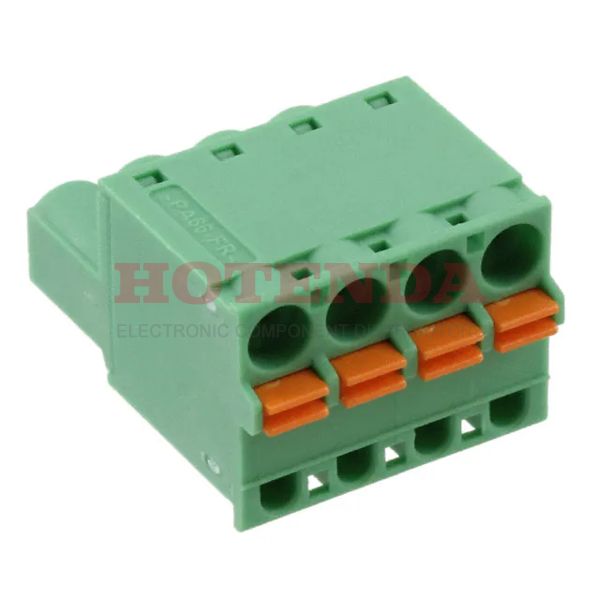

Name: 1909236
Brand: Phoenix Contact
SKU: 1909236
Price: 6.04000 USD
Availability: InStock

new-10%

1909236

Manufacturer part number:1909236

Manufacturer:Phoenix Contact

Description:1909236 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1909236 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	6.639997g
Packaging	Bulk
Published	2003
Series	COMBICON FKCT
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	25.6mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Number of Contacts	4
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	10A
Voltage - IEC	630V
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	20.1mm
Length	20.1mm
Width	25.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1909236 Product Details

1909236 Overview

Socket packaging is included.The mounting type of the device is Free Hanging (In-Line).Packaging for the product is carried out via a Bulk case.It's from the COMBICON FKCT Series.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.Part Cable, Free Hanging is mounted to the part.It is recommended that this chip's supply voltage does not exceed 250V.With this part, you get a lot of benefits that you won't find in other Plug, Female Sockets products.
