Name: 1910377
Brand: Phoenix Contact
SKU: 1910377
Price: 4.65000 USD
Availability: InStock

new-10%

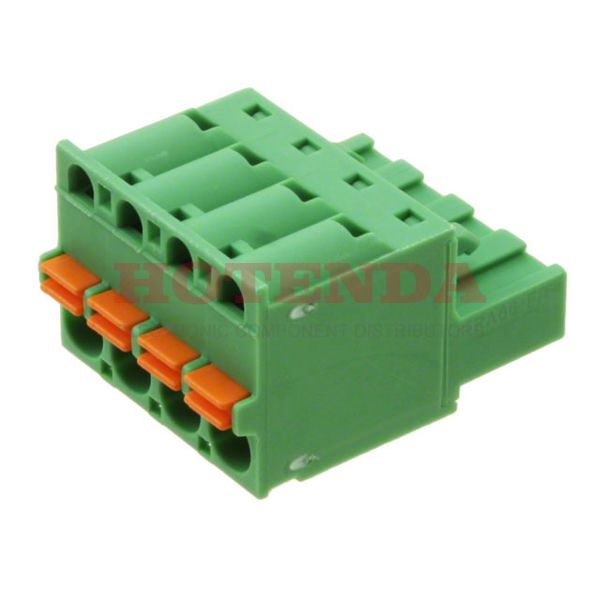

1910377

Manufacturer part number:1910377

Manufacturer:Phoenix Contact

Description:1910377 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1910377 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	6.549987g
Packaging	Bulk
Published	2011
Series	COMBICON FKC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	15mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Number of Contacts	4
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	10A
Voltage - IEC	630V
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	20.1mm
Length	15mm
Width	25.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1910377 Product Details

1910377 Overview

A Socket packaging is included.Free Hanging (In-Line) is the mounting type for the device.To package the product, we use a Bulk case.Among the products in the COMBICON FKC Series, it is one of the most popular.In many ways, its Retention Latches (Non-Wire Side) feature makes it more powerful.It's mounted by Cable, Free Hanging.This part shares lots of benefits with other Plug, Female Sockets products.
