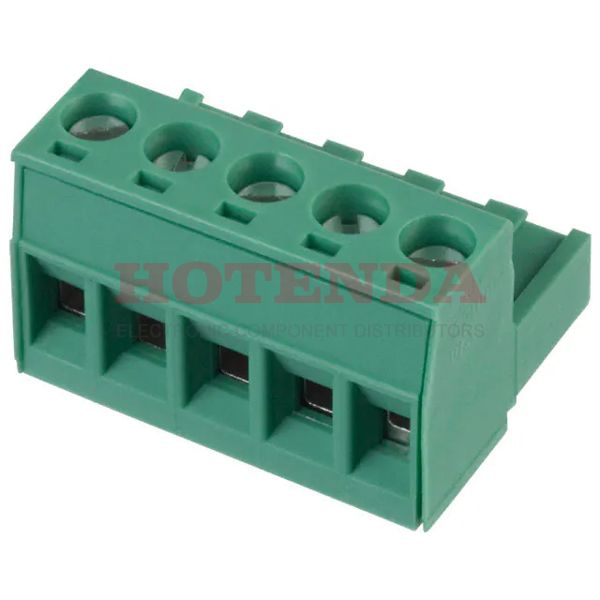

Name: 1911884
Brand: Phoenix Contact
SKU: 1911884
Price: 6.72000 USD
Availability: InStock

new-10%

1911884

Manufacturer part number:1911884

Manufacturer:Phoenix Contact

Description:1911884 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1911884 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging, Through Hole
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	8.390013g
Packaging	Bulk
Published	2001
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	250V
Additional Feature	PA, UL 94V0
Pitch	0.197 5.00mm
Orientation	Straight
Depth	15mm
Insulation Height	0.591 15.00mm
Current Rating	16A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, VDE, cULus
Voltage	300V
Number of Levels	1
Current	16A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Poles	5
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Height	18.2mm
Length	15mm
Width	25mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1911884 Product Details

1911884 Overview

The product is packaged in Screw, Socket.Free Hanging (In-Line) is the type of mounting for the device.We use a Bulk case to package the product.As a product of the COMBICON MSTB Series, it can be found in this category.There are also other features like PA, UL 94V0, to name a few.It is more powerful in many ways due to its Retention Latches (Non-Wire Side) feature.The part is mounted by Free Hanging, Through Hole.There are a lot of advantages this part has in common with other Plug, Female Sockets parts.
